组件功能测试

1 前置步骤
2 组件服务功能测试

1 前置步骤

1.1创建NDH用户

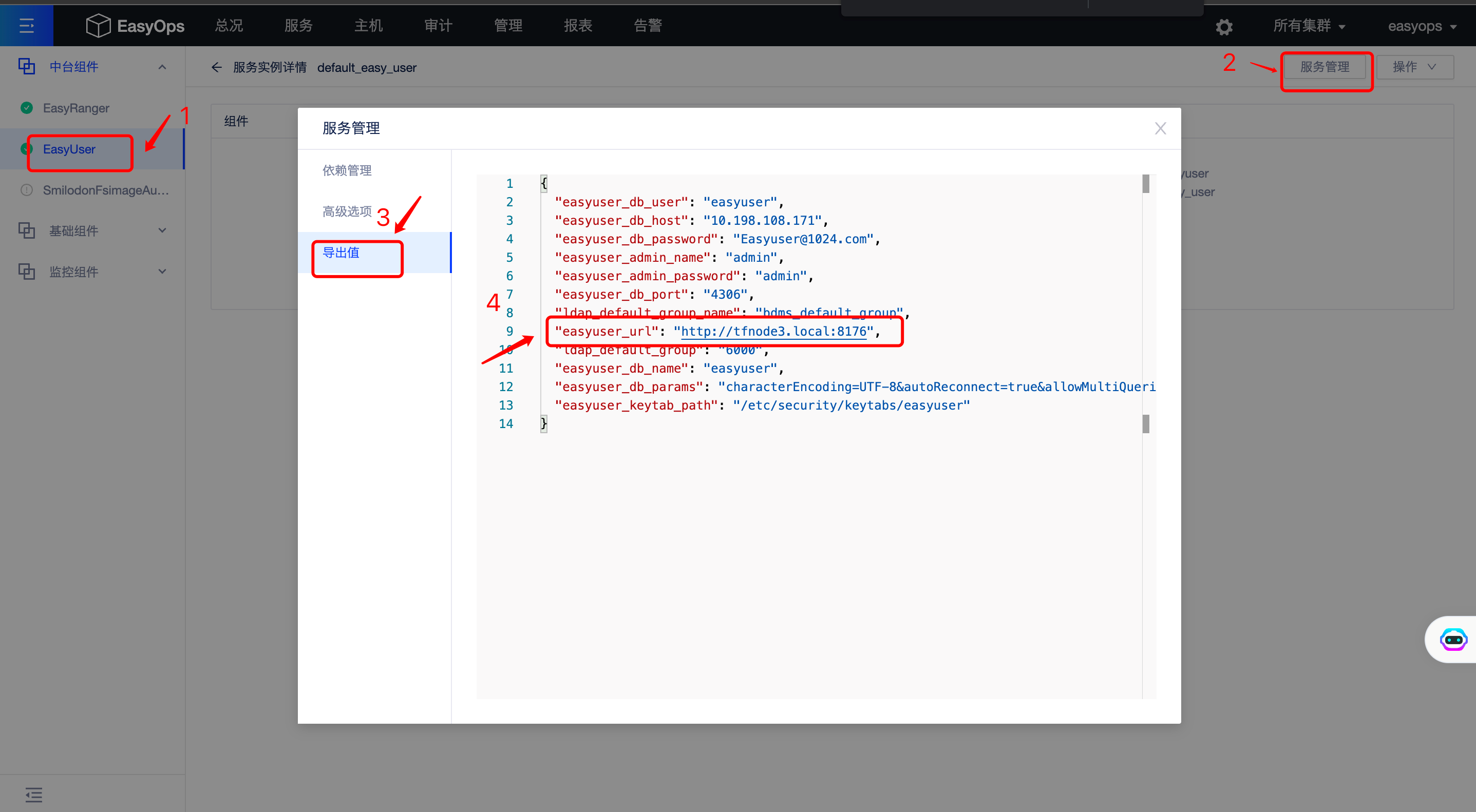

1. 通过EasyOps查看EasyUser服务easyuser_url:http://tfnode3.local:8176 2. 通过EasyUser服务创建用户

# 将url替换为步骤1中获取的easyuser_url，执行后返回success
curl -u admin:admin -d '{"username": "ndh_test_user","password":"abc123456"}' -X POST 'http://tfnode3.local:8176/secure/users' -H 'Content-Type:application/json'

# 查看已创建用户，确认用户创建成功
curl -u admin:admin http://tfnode3.local:8176/secure/users

# 下载对应用户的keytab
curl -u admin:admin -O http://tfnode3.local:8176/secure/keytab/ndh_test_user.keytab

1.2 YARN 资源池配置

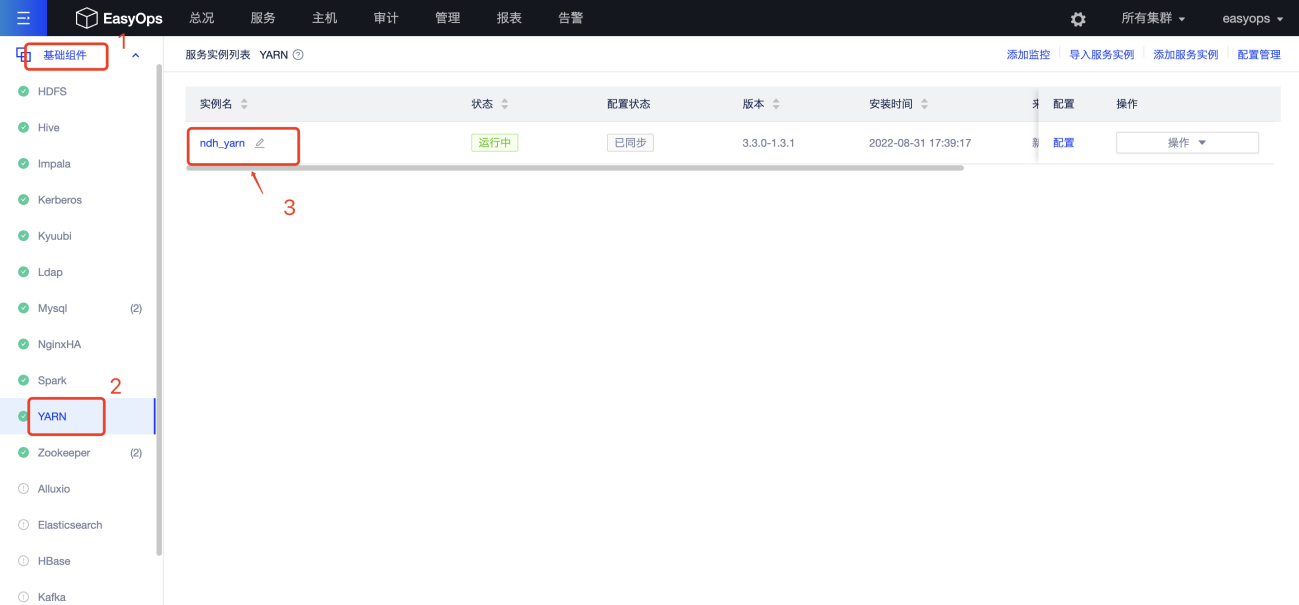

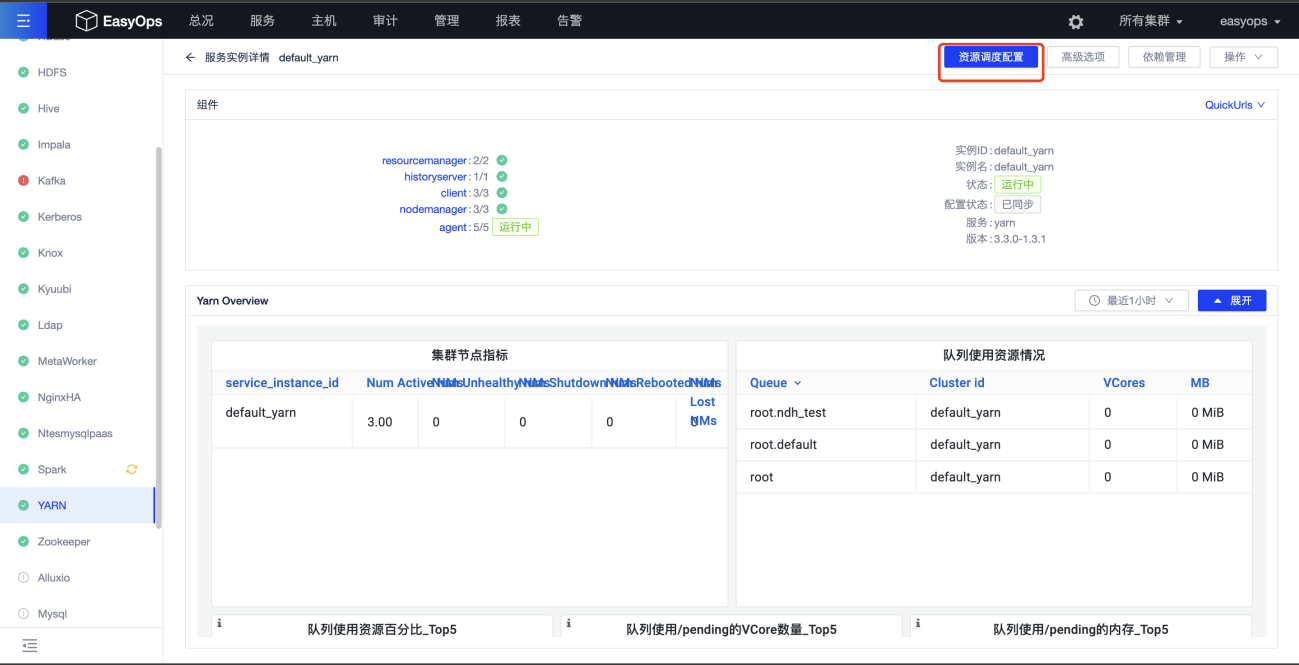

1. 登录EasyOps进入YARN 服务

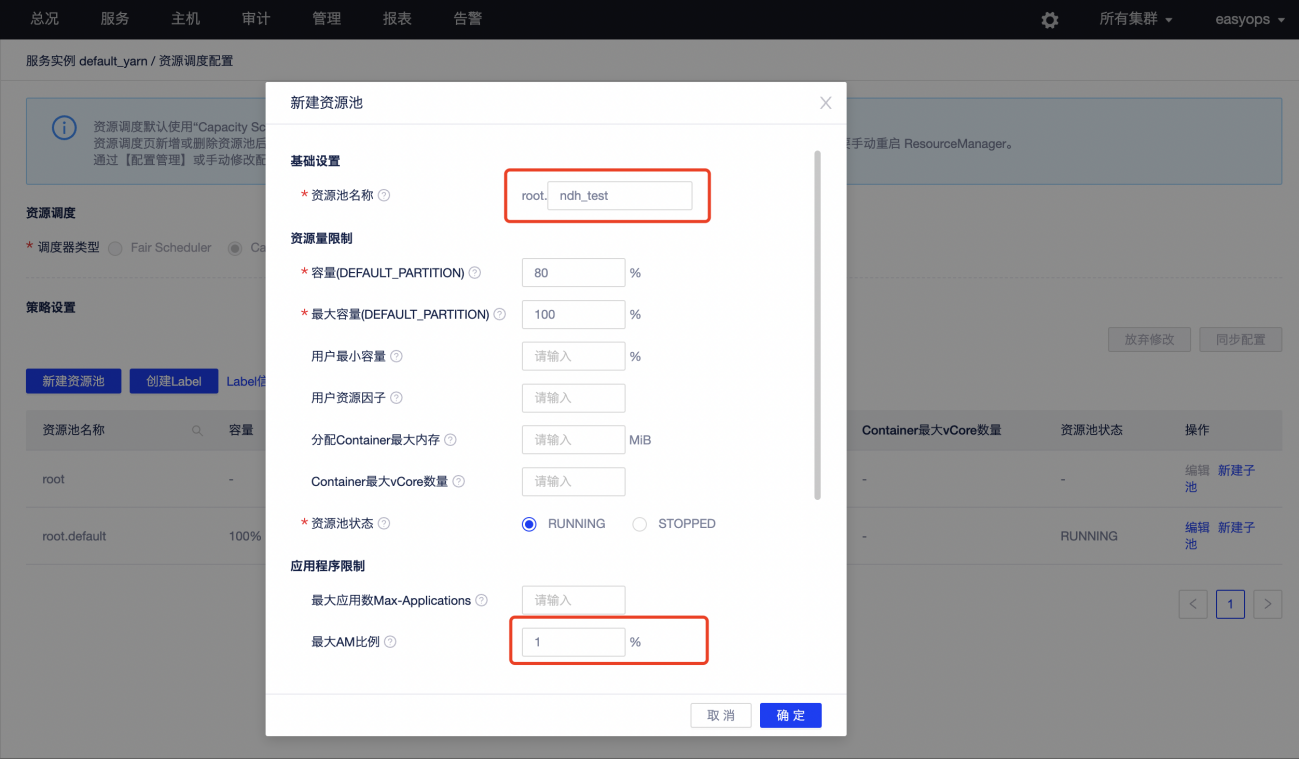

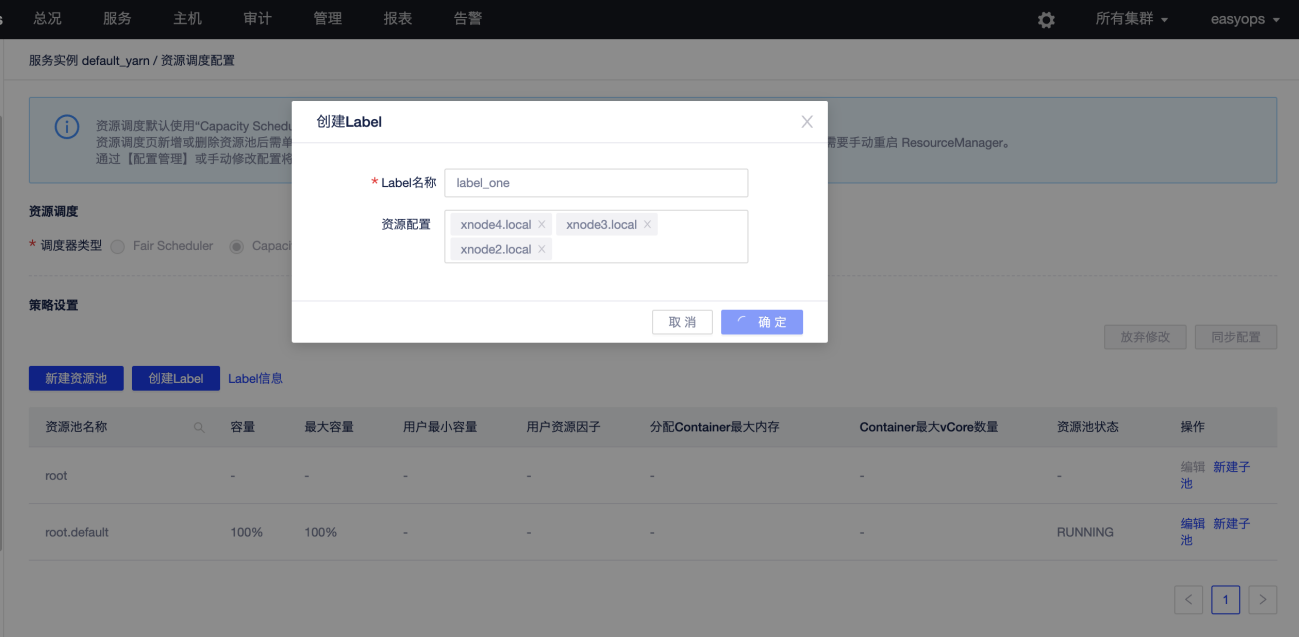

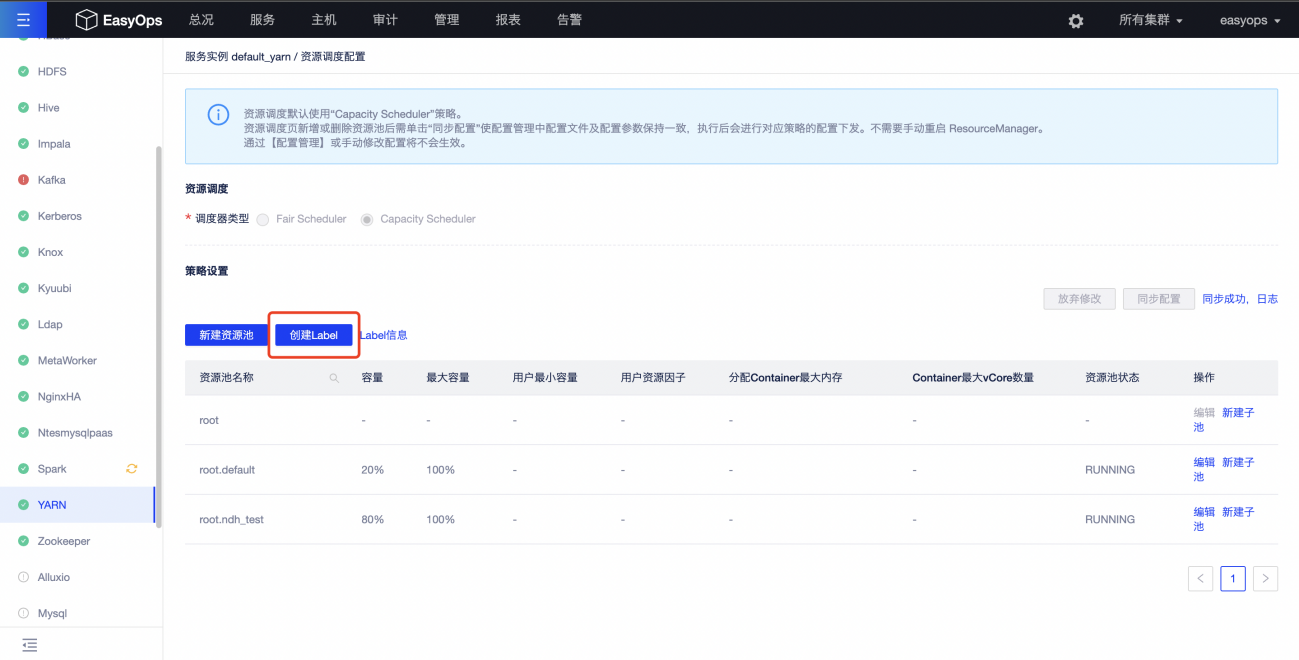

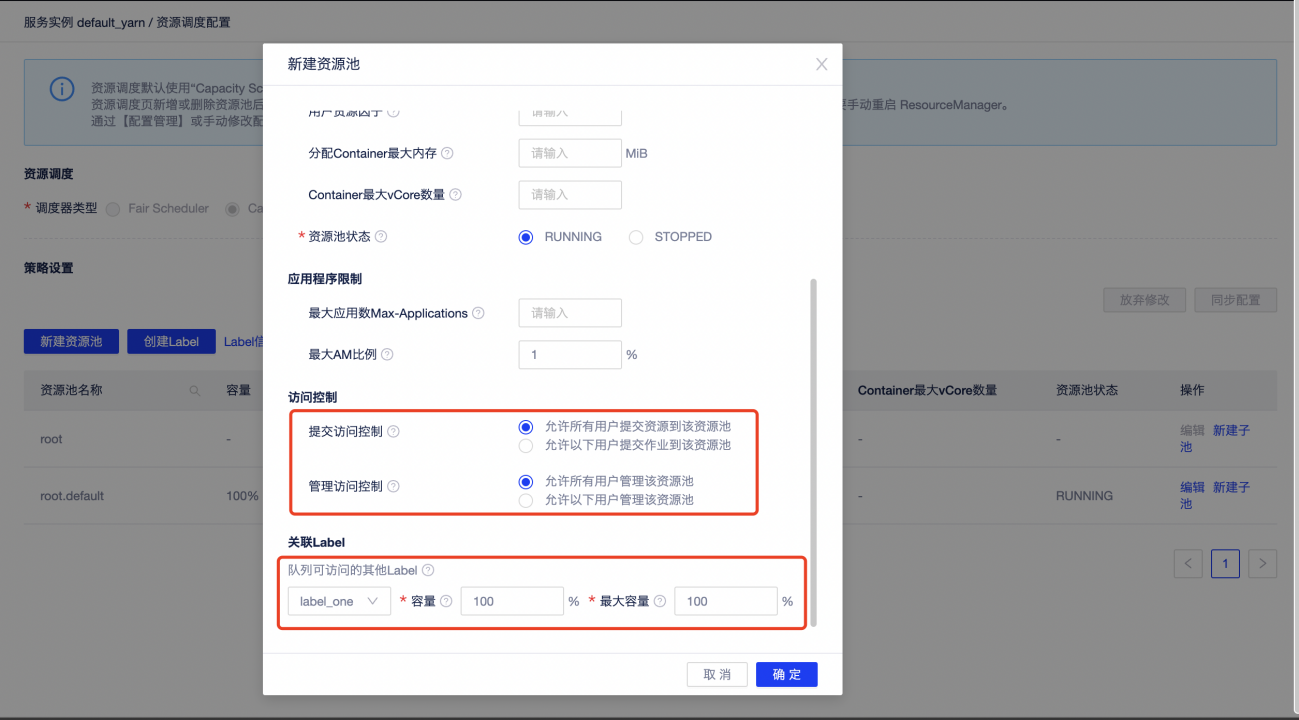

2. 创建label，并添加资源 3. 新建资源池注意：

新增、修改队列，要确保目前已有队列的容量总和为100%
最大AM比例此需要填写为0-1
新增、修改队列，多队列共用同一label时，需要确保多队列共用的label资源和为100%，否则会导致同步配置失败

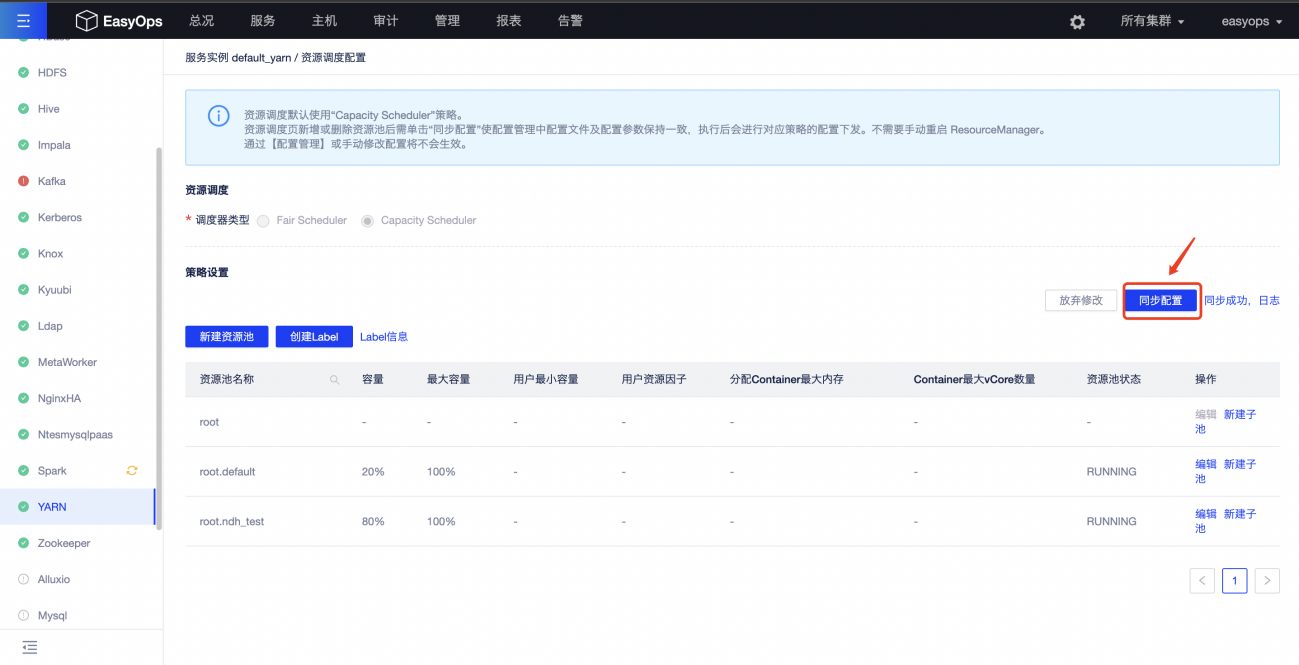

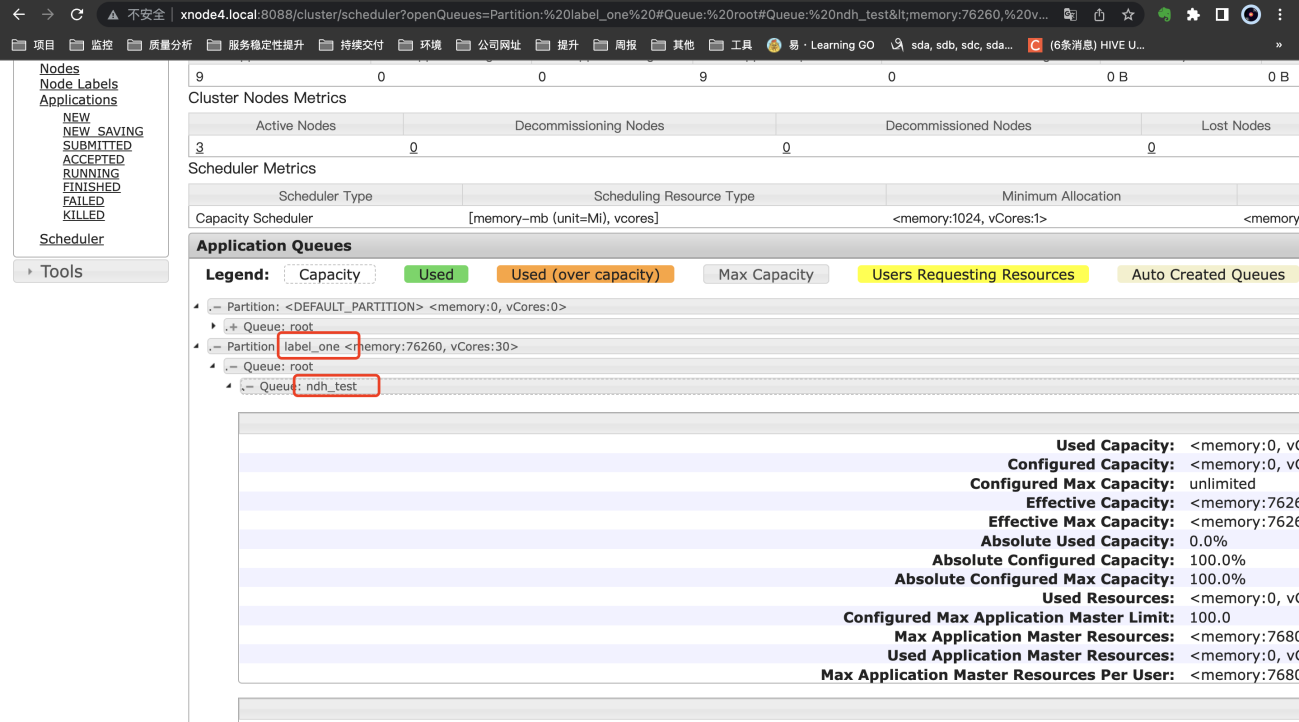

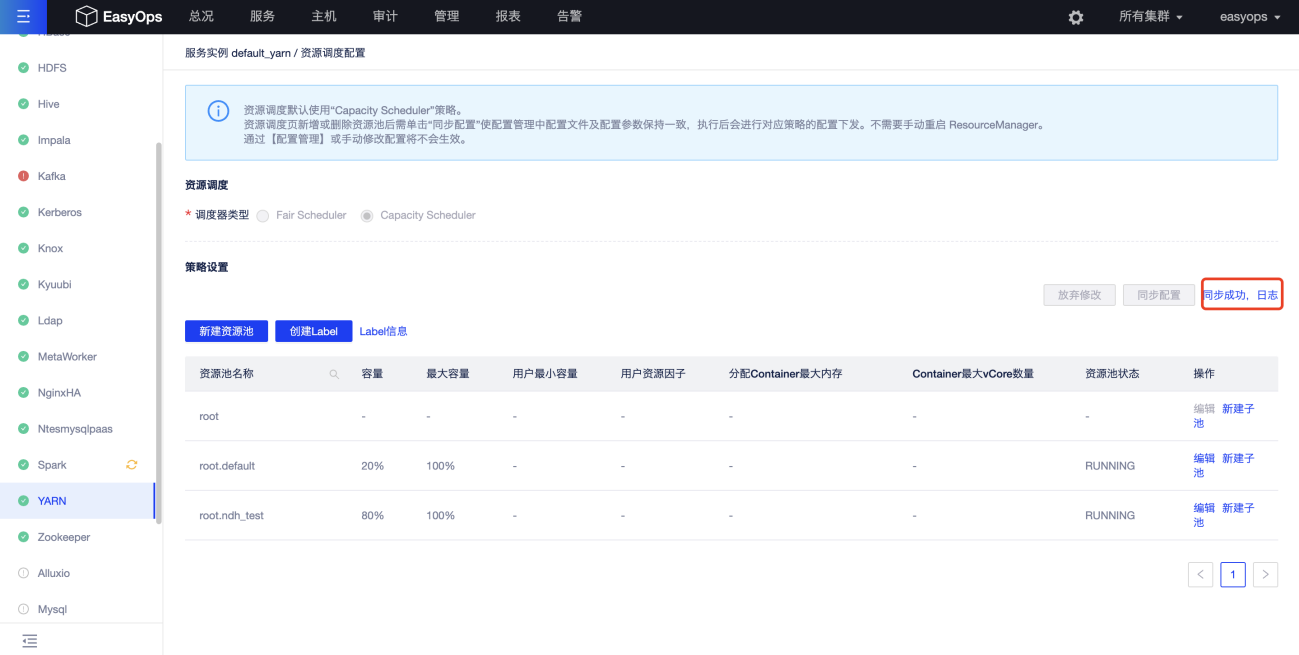

4. 保存并同步配置 5. 进入YARN UI查看队列是否生效

1.3 Hive 测试库预置

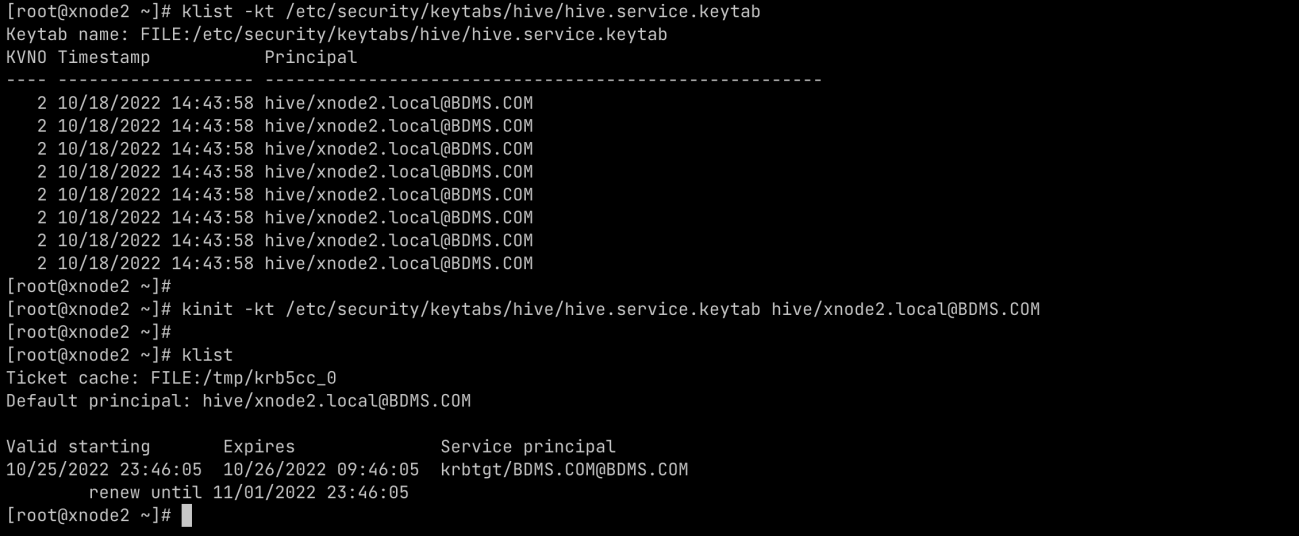

1. 登录Hive Client部署机器 2. 执行kinit认证操作：通过hive用户认证

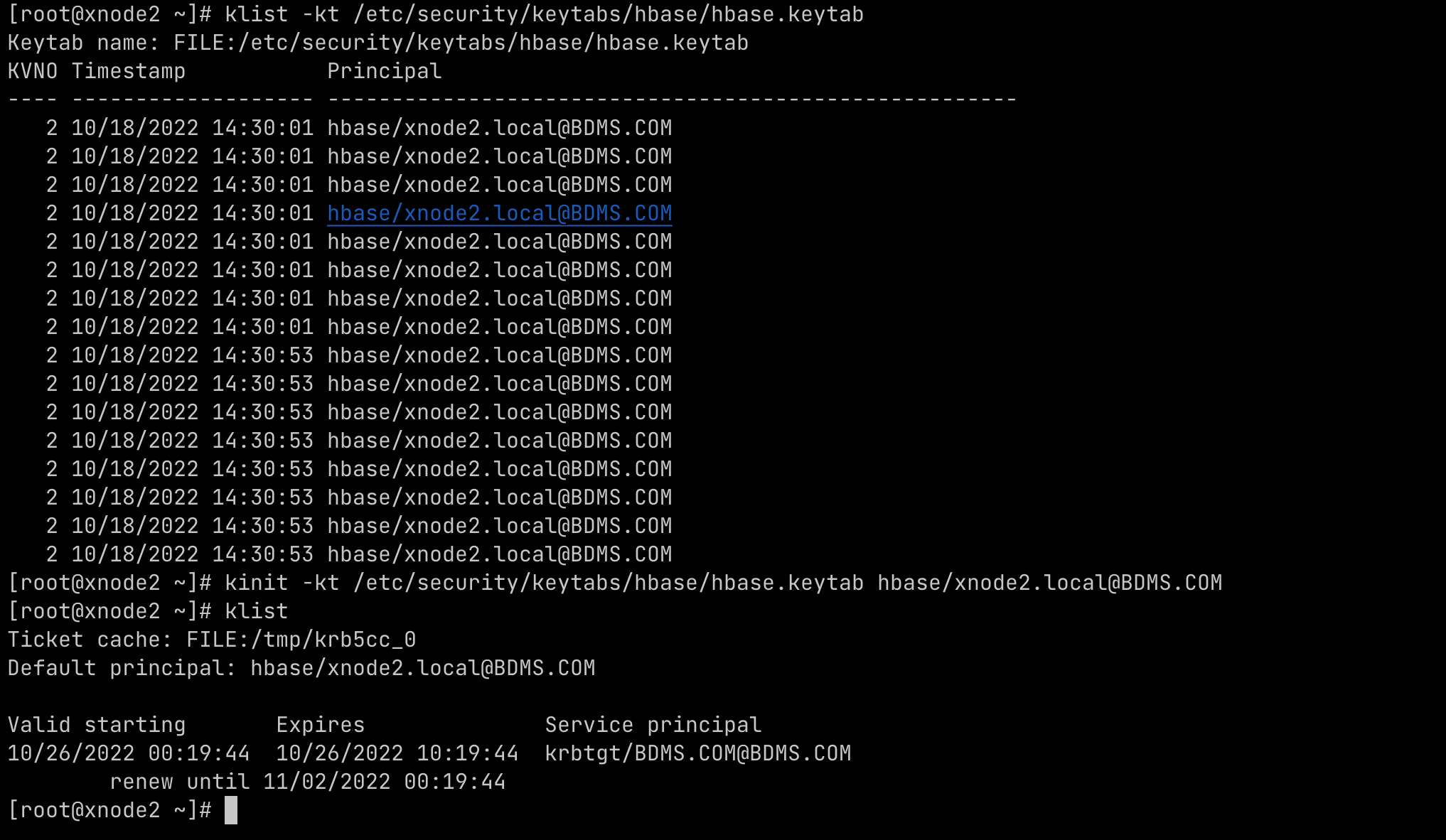

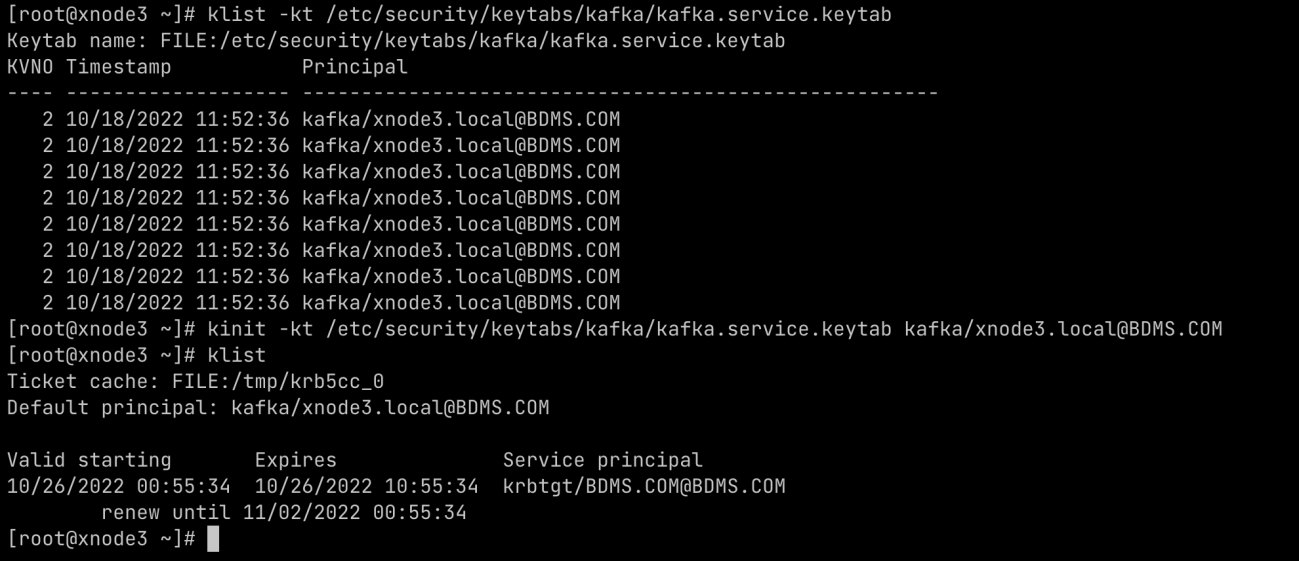

# 执行klist查看Principal
klist -kt /etc/security/keytabs/hive/hive.service.keytab
# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/hive/hive.service.keytab hive/xnode2.local@BDMS.COM

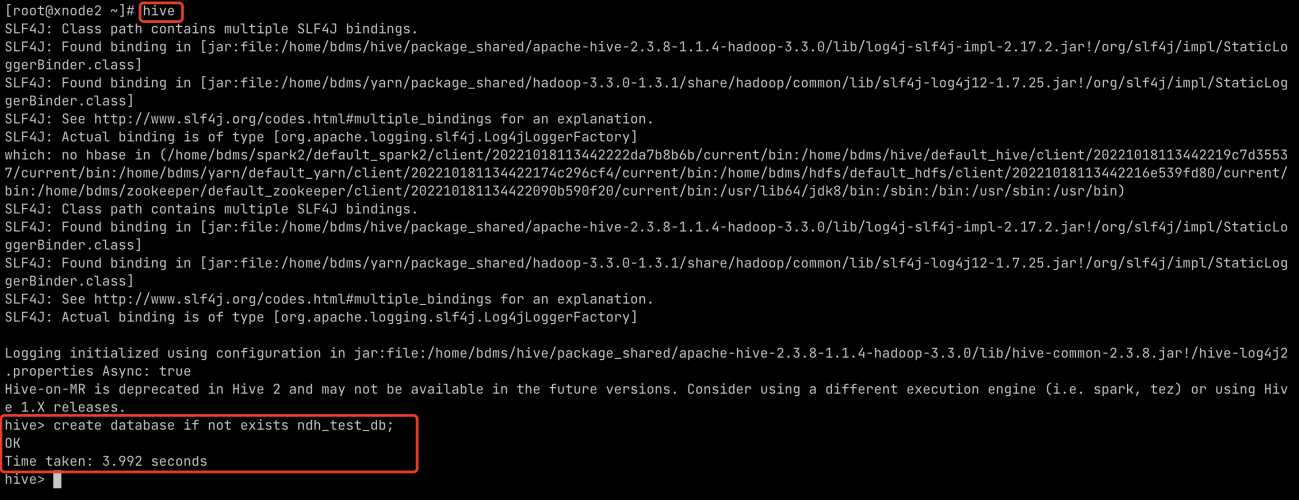

3. 通过hive命令创建测试库、表

create database if not exists ndh_test_db;
create table if not exists ndh_test_db.ndh_base_tbl(id int, name string);

1.4 通过Access 级联授权

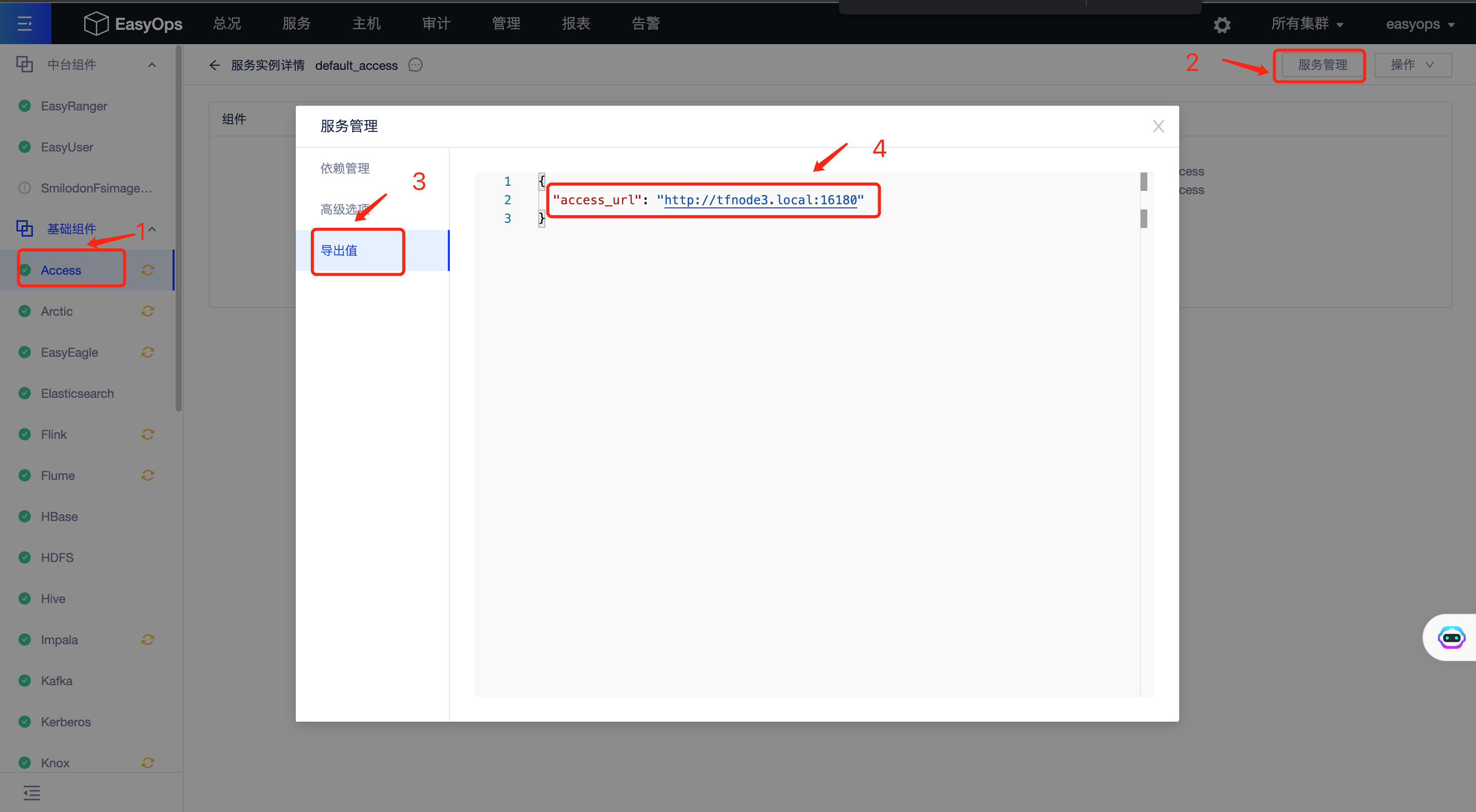

1. 查看Access URL
access_url: "http://172.30.4.108:16180"

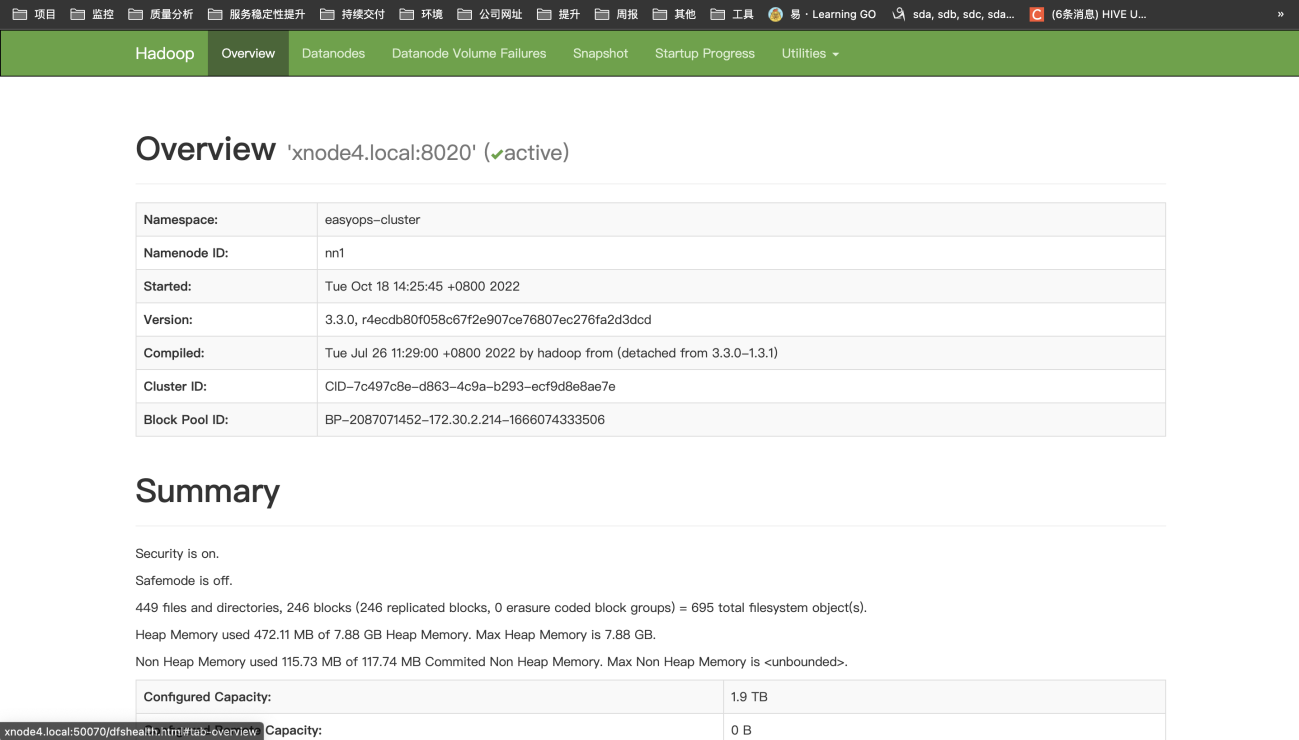

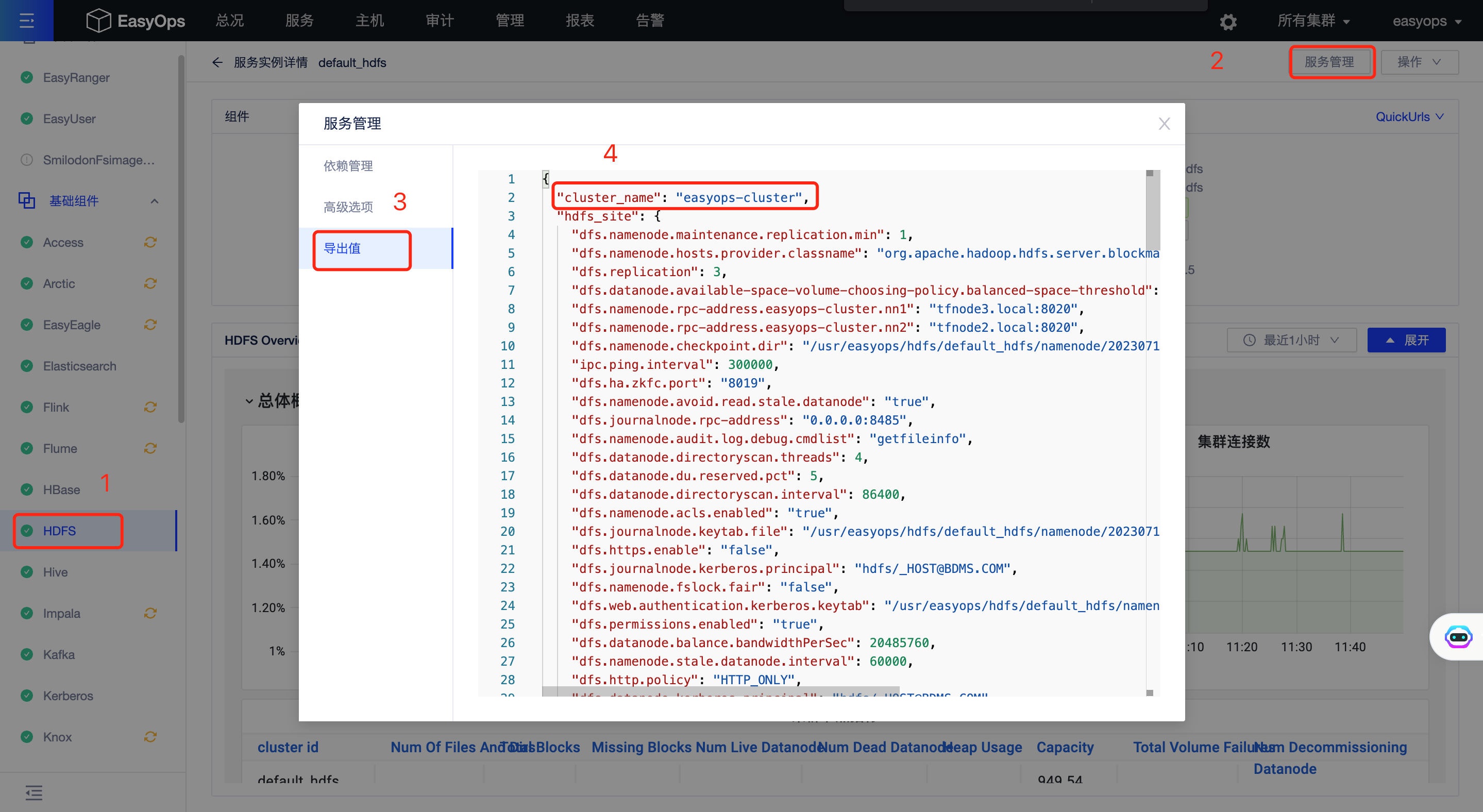

2. 查看Access依赖的HDFS 的clusterId clusterId: easyops-cluster

3. 调用Access API授权库：将库ndh_test_dbcreate权限授权ndh_test_user

# 拼接请求体,clusterId替换为上述查询的HDFS clusterId
{"clusterId": "easyops-cluster","users": ["ndh_test_user"],"db":"ndh_test_db"}

# 拼接请求URL，http://172.30.4.108:16180替换为上述查询到的Access URL
http://172.30.4.108:16180/openapi/permission/v1/data-auth/grantForDB

# 通过curl 发送post请求
curl -d '{"clusterId": "easyops-cluster","users": ["ndh_test_user"],"db":"ndh_test_db"}' -X POST 'http://172.30.4.108:16180/openapi/permission/v1/data-auth/grantForDB' -H 'Content-Type:application/json'

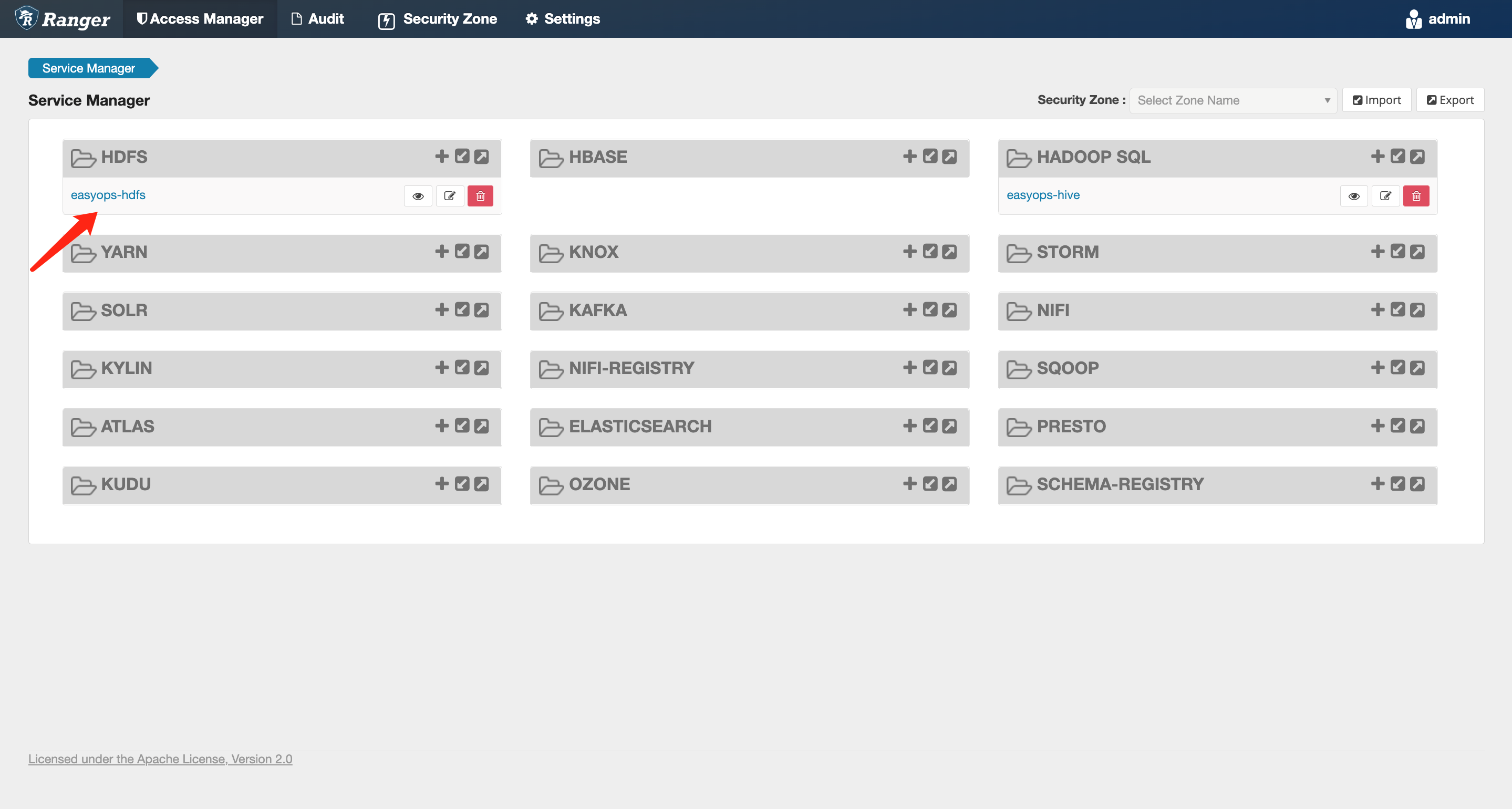

校验级联授权结果：

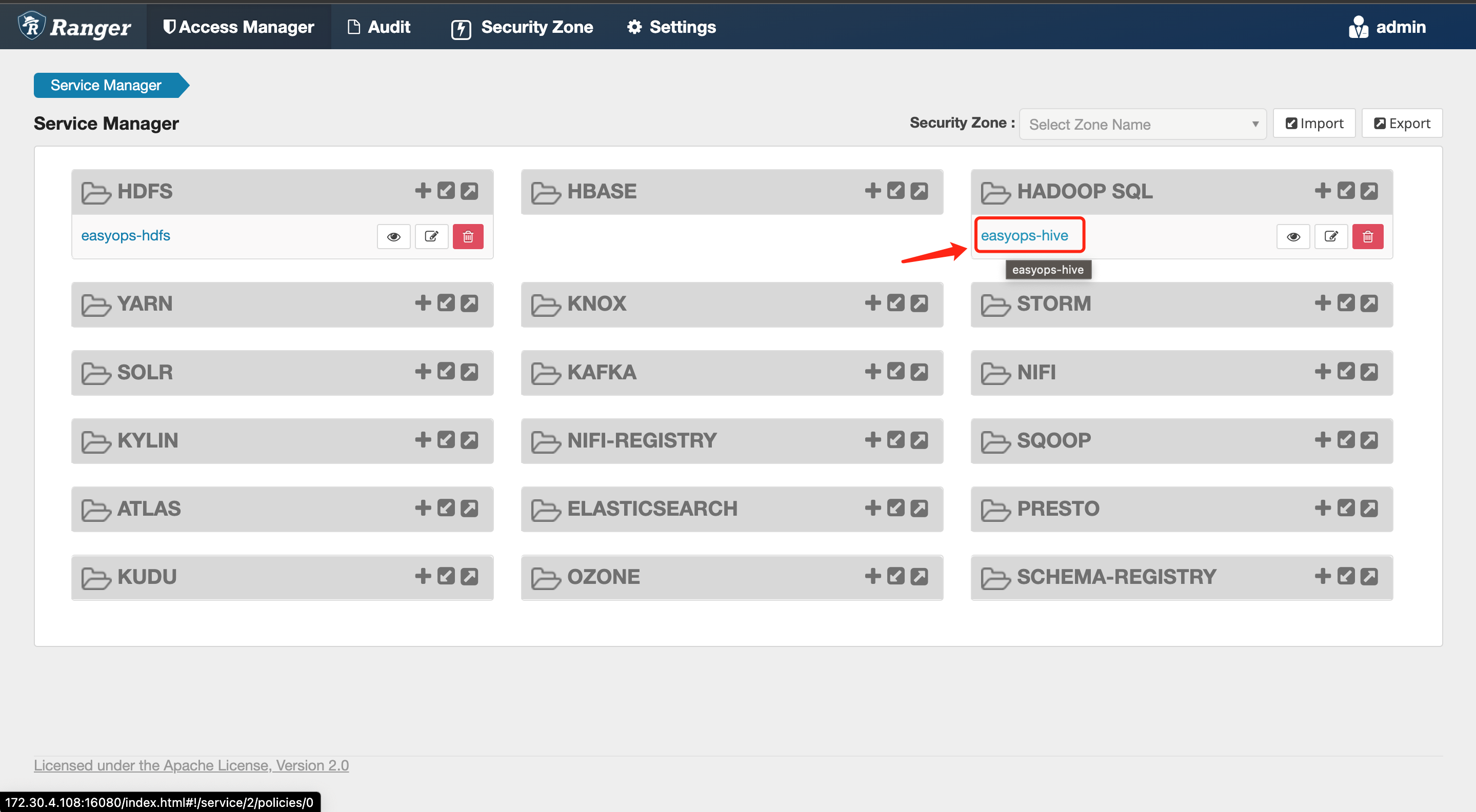

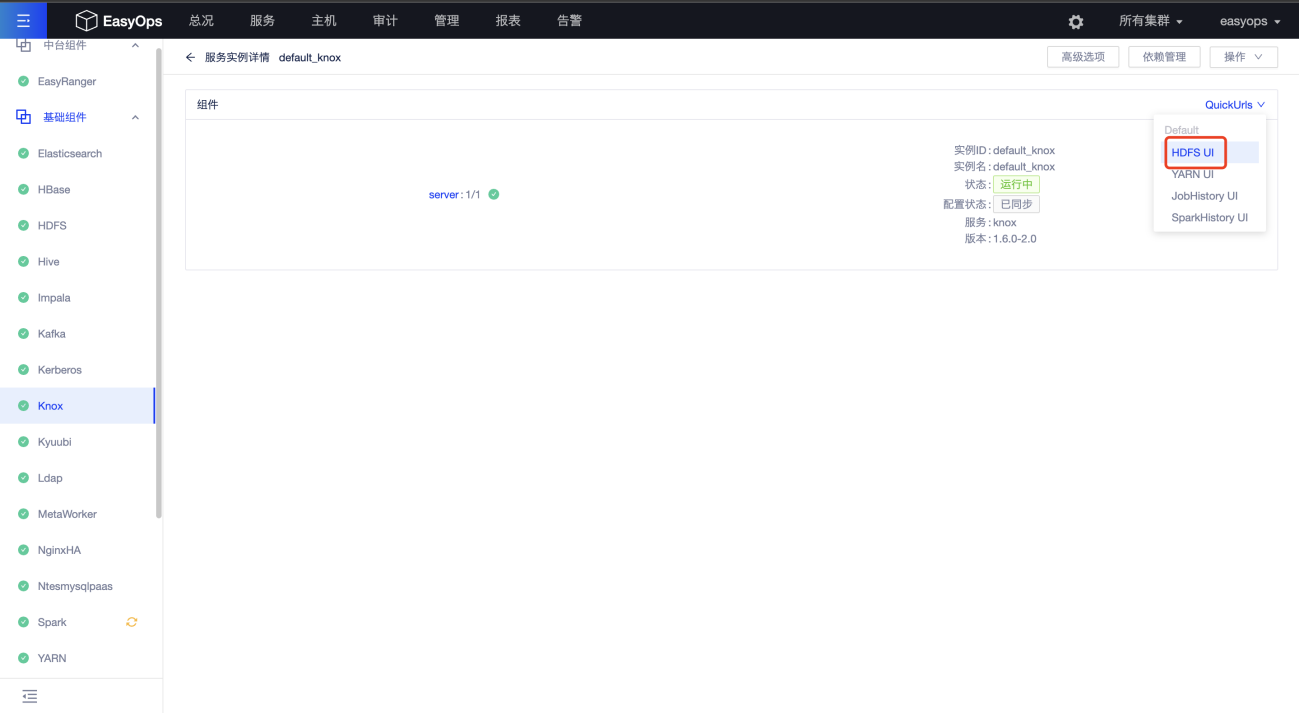

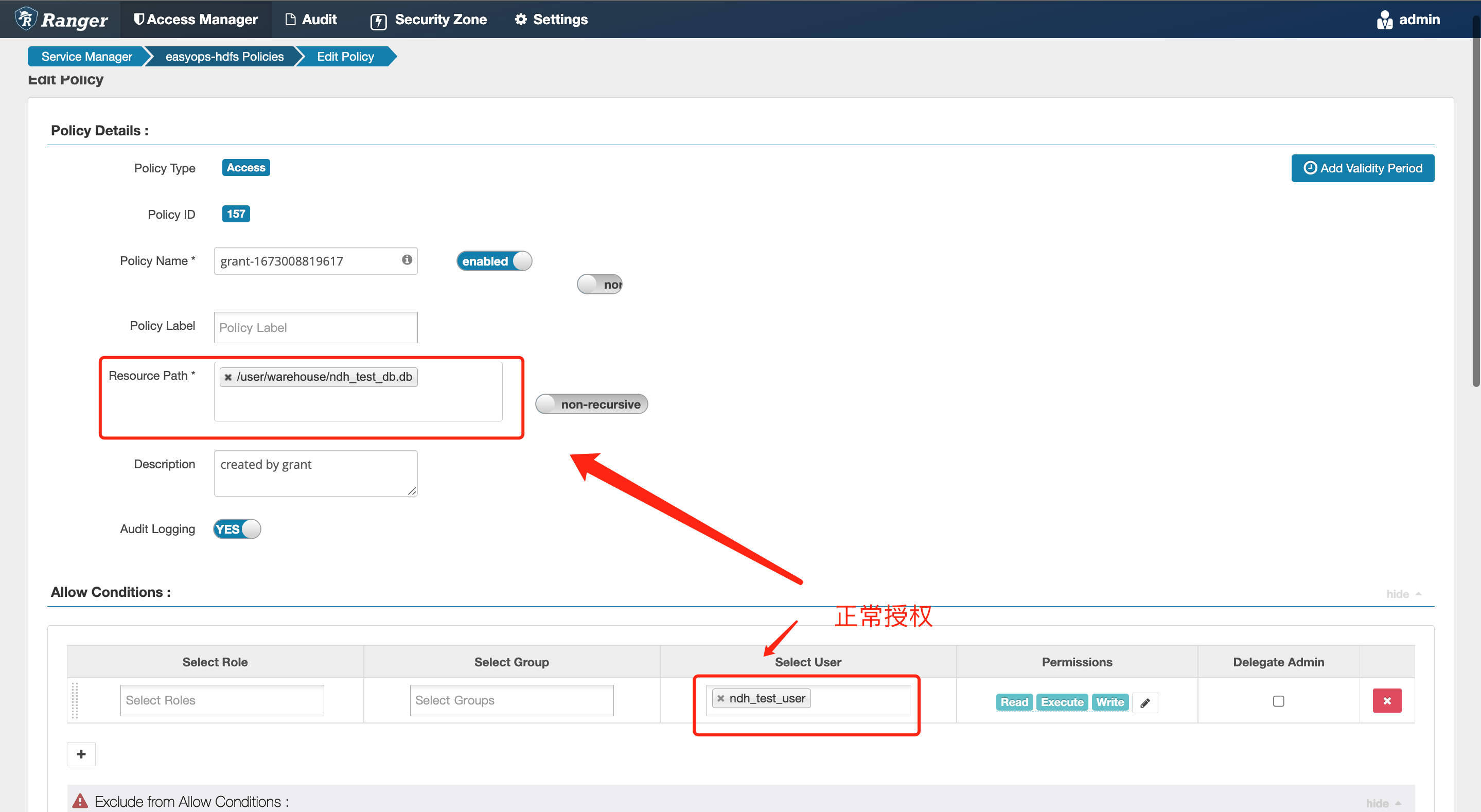

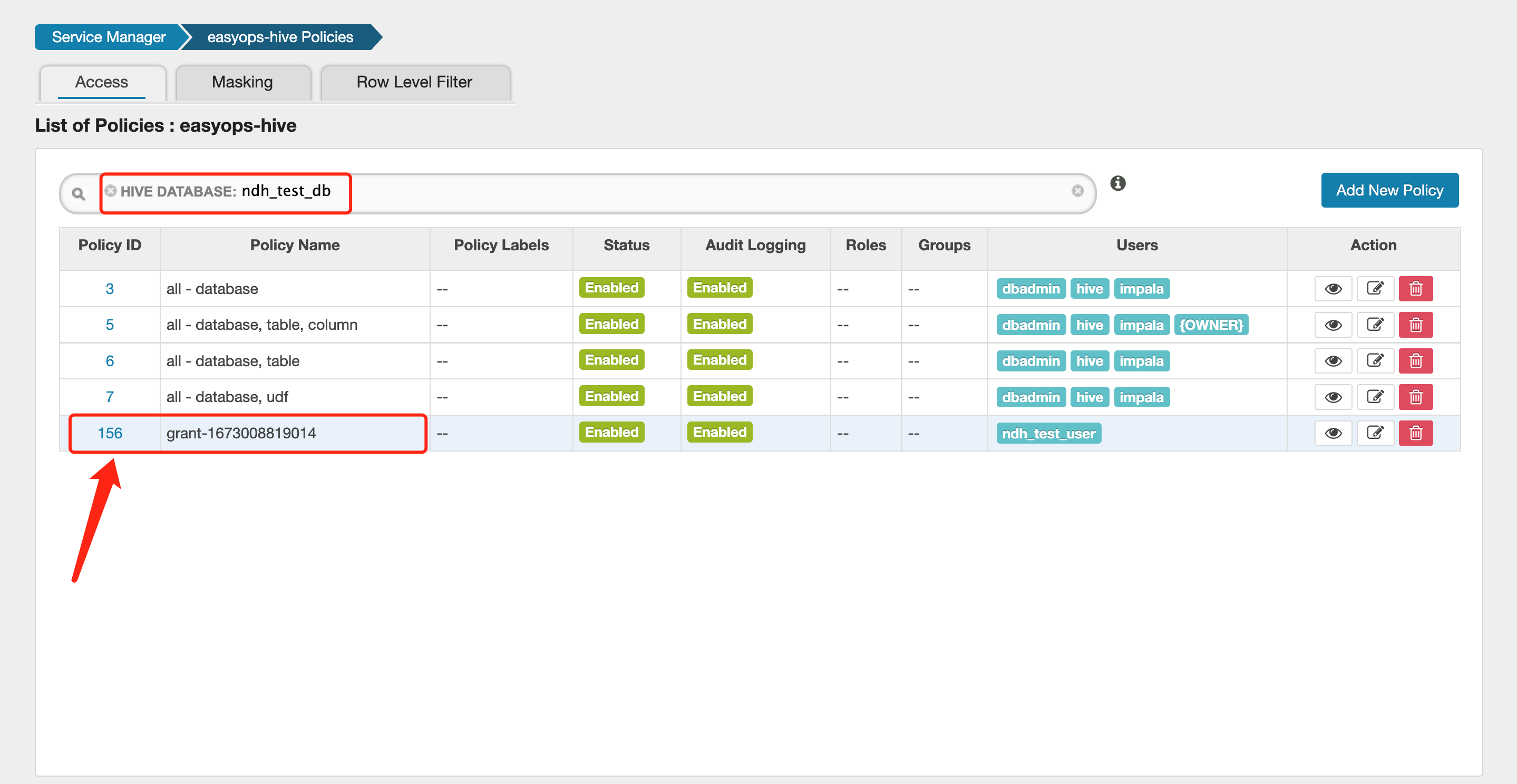

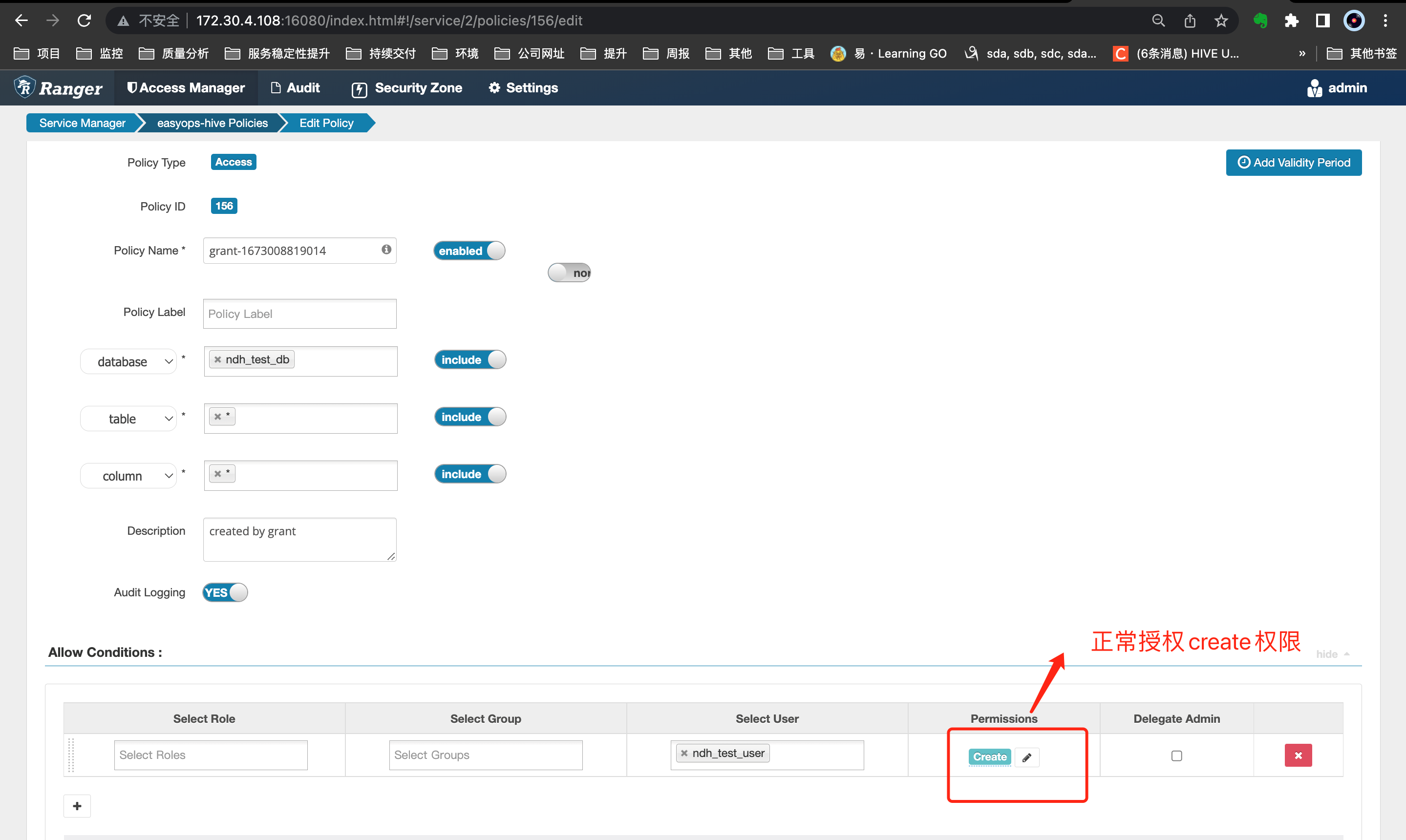

校验Hive Policy正常新建查询hive 库ndh_test_db授权信息校验HDFS policy正常级联创建查询库路径授权信息：/user/warehouse/ndh_test_db.db 4. ccess API授权表将ndh_test_db.ndh_base_tbl 表的所有权限授权给ndh_test_user

# 拼接请求体,clusterId替换为上述查询的HDFS clusterId
{"clusterId": "easyops-cluster","product": "","users": ["ndh_test_user"],"authItems": [{"dataResource": {"serviceType": "HIVE","db": "ndh_test_db","tbl":"ndh_base_tbl","col":"*","associate":true},"dataAuthActionItems": [{"action": "select","expireTime": 1662453185000},{"action": "update","expireTime": 1662453185000},{"action": "alter","expireTime": 1662453185000},{"action": "drop","expireTime": 1662453185000}]}],"operator": "pb"}

# 拼接请求URL，http://172.30.4.108:16180替换为上述查询到的Access URL
http://172.30.4.108:16180/openapi/permission/v1/data-auth/grant

# 通过curl 发送post请求
curl -d '{"clusterId": "easyops-cluster","product": "","users": ["ndh_test_user"],"authItems": [{"dataResource": {"serviceType": "HIVE","db": "ndh_test_db","tbl":"ndh_base_tbl","col":"*","associate":true},"dataAuthActionItems": [{"action": "select","expireTime": 1662453185000},{"action": "update","expireTime": 1662453185000},{"action": "alter","expireTime": 1662453185000},{"action": "drop","expireTime": 1662453185000}]}],"operator": "pb"}' -X POST 'http://172.30.4.108:16180/openapi/permission/v1/data-auth/grant' -H 'Content-Type:application/json'

2 组件服务功能测试

2.1 HDFS 服务功能测试

2.1.1 前置操作

1. 登录HDFS Client部署服务器

2. 执行kinit认证操作

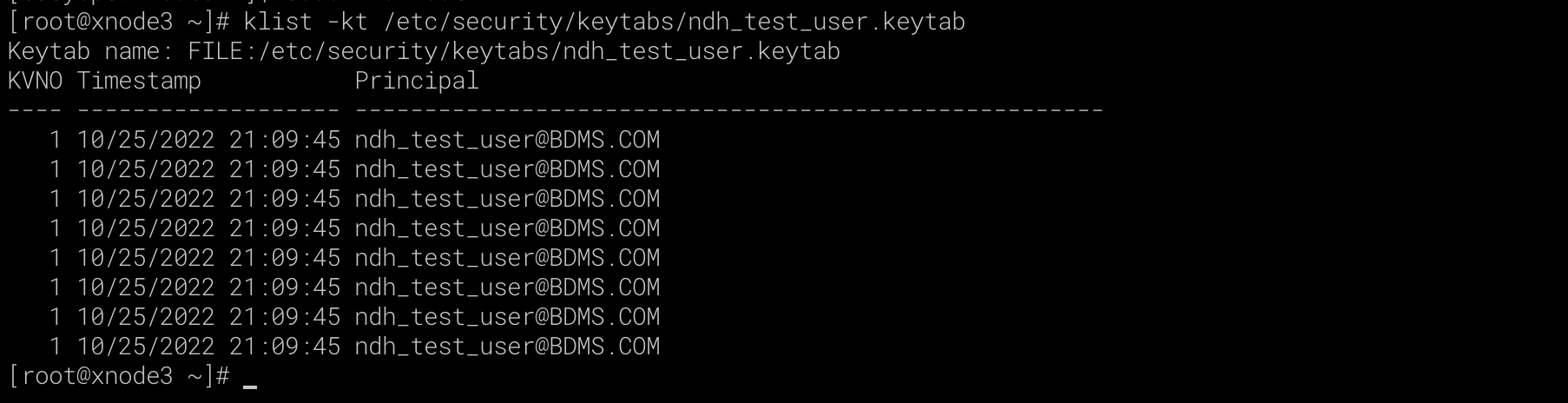

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab
# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab  ndh_test_user@BDMS.COM

2.1.2 验证步骤

1. 查看hdfs文件目录

hdfs dfs -ls /

2. 在hdfs上创建文件并写入数据

hdfs dfs -touchz  /user/ndh_test_user/test_file.txt
echo "<Text to append, ndh test: word count case>" | hdfs dfs -appendToFile - /user/ndh_test_user/test_file.txt

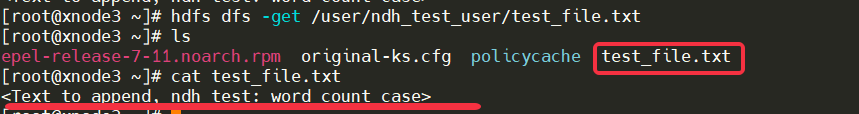

3. 从hdfs上下载文件

hdfs dfs -get /user/ndh_test_user/test_file.txt

2.1.3 预期结果

1. 命令正常执行

2. 创建文件后可在hdfs文件系统查看到 3. 成功下载到上一步的文件，查看其内容为上一步写入的内容

2.2 Yarn 服务功能测试

2.2.1 前置操作

1. 登录YARN Client部署服务器

2. 执行kinit认证操作

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab
# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab  ndh_test_user@BDMS.COM

3. 查看YarnClient部署目录

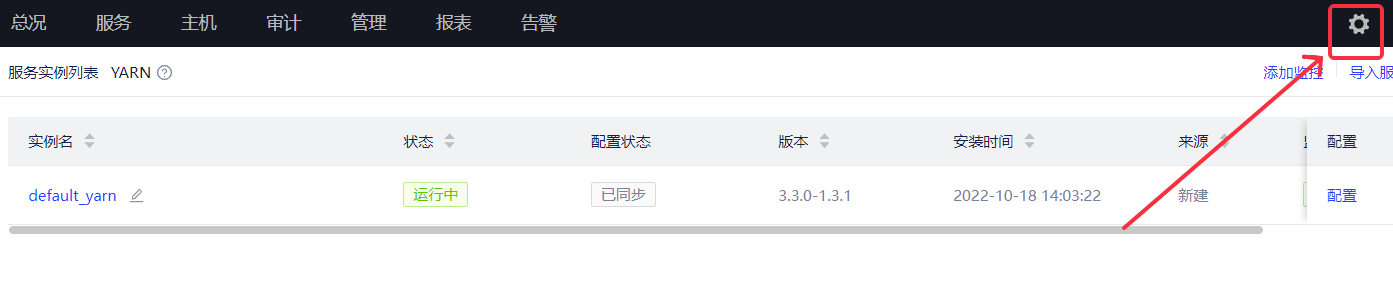

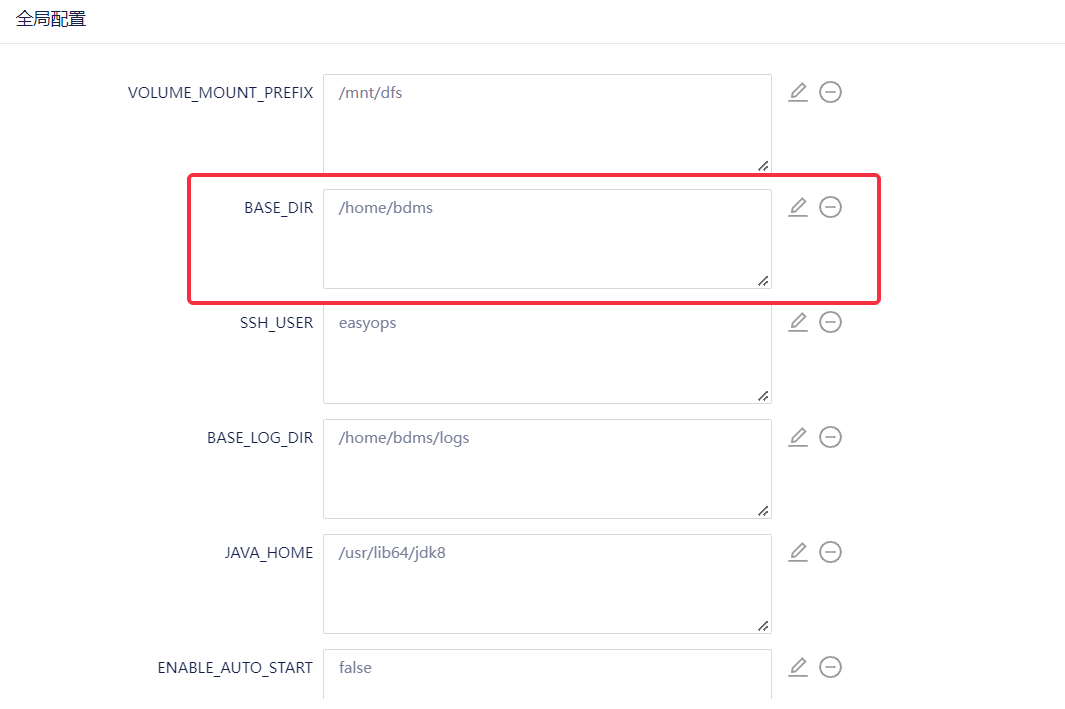

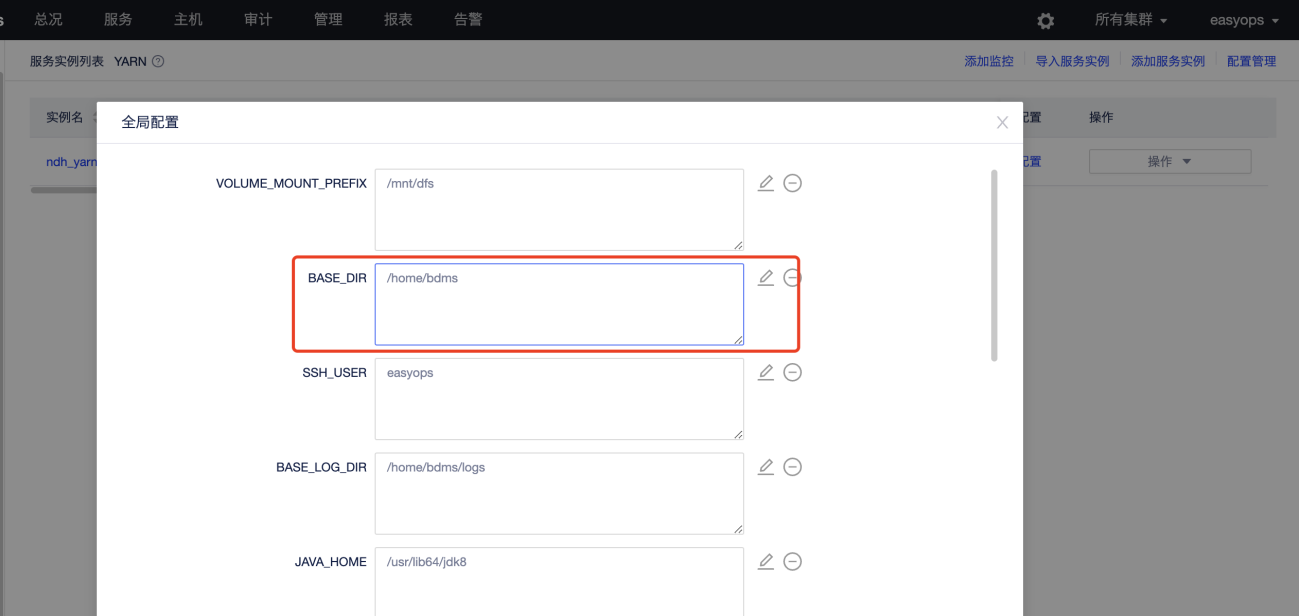

查看EasyOps服务部署根目录（BASE_DIR），如/home/bdms 进入BASE_DIR,并逐级找到Yarn Client部署目录（其中/20221018113442217309170ee为组件实例名，不同机器上不同），如下所示的/home/bdms/yarn/default_yarn/client//20221018113442217309170ee

# 替换/home/bdms为上述获取的EasyOps服务部署的根目录BASE_DIR
[root@xnode3 ~]# cd /home/bdms/
[root@xnode3 bdms]# ls
hadoop  hdfs  impala  java  knox  kyuubi  logs  monitor  nginx_ha  spark2  yarn  zookeeper
[root@xnode3 bdms]# cd yarn
[root@xnode3 yarn]# ls
default_yarn   package_shared
[root@xnode3 yarn]# cd dafault_yarn/
[root@xnode3 default_yarn]# ls
client  historyserver  nodemanager  resourcemanager
[root@xnode3 default_yarn]# cd client/
[root@xnode3 client]# ls
/20221018113442217309170ee
# 此处若组件安装多次，则选择目录创建时间最近的
[root@xnode3 client]# cd /20221018113442217309170ee/
[root@xnode3 /20221018113442217309170ee]# ls
config  current  data  keytab  logs pid
[root@xnode3 /20221018113442217309170ee]# pwd
/home/bdms/yarn/default_yarn/client/20221018113442217309170ee

2.2.2 验证步骤

1. 执行MR example wordcount任务

# 若已执行过，则需要删除输出目录
hdfs dfs -rmr -skipTrash /tmp/input
hdfs dfs -rmr -skipTrash /tmp/output

hdfs dfs -mkdir -p /tmp/input
hdfs dfs -touchz /tmp/input/ndh_test_file.txt
echo "<Text to append, ndh test: word count case>" | hdfs dfs -appendToFile - /tmp/input/ndh_test_file.txt

# 指定EXAMPLE_JAR_DIR为上述查看的YARN Client部署目录
EXAMPLE_JAR_DIR=/home/bdms/yarn/default_yarn/client/20221018113442217309170ee
source ${EXAMPLE_JAR_DIR}/config/hadoop-env.sh
# 执行队列为前置步骤中创建的队列名
hadoop jar ${EXAMPLE_JAR_DIR}/current/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.0.jar wordcount -Dmapreduce.job.queuename=ndh_test /tmp/input /tmp/output

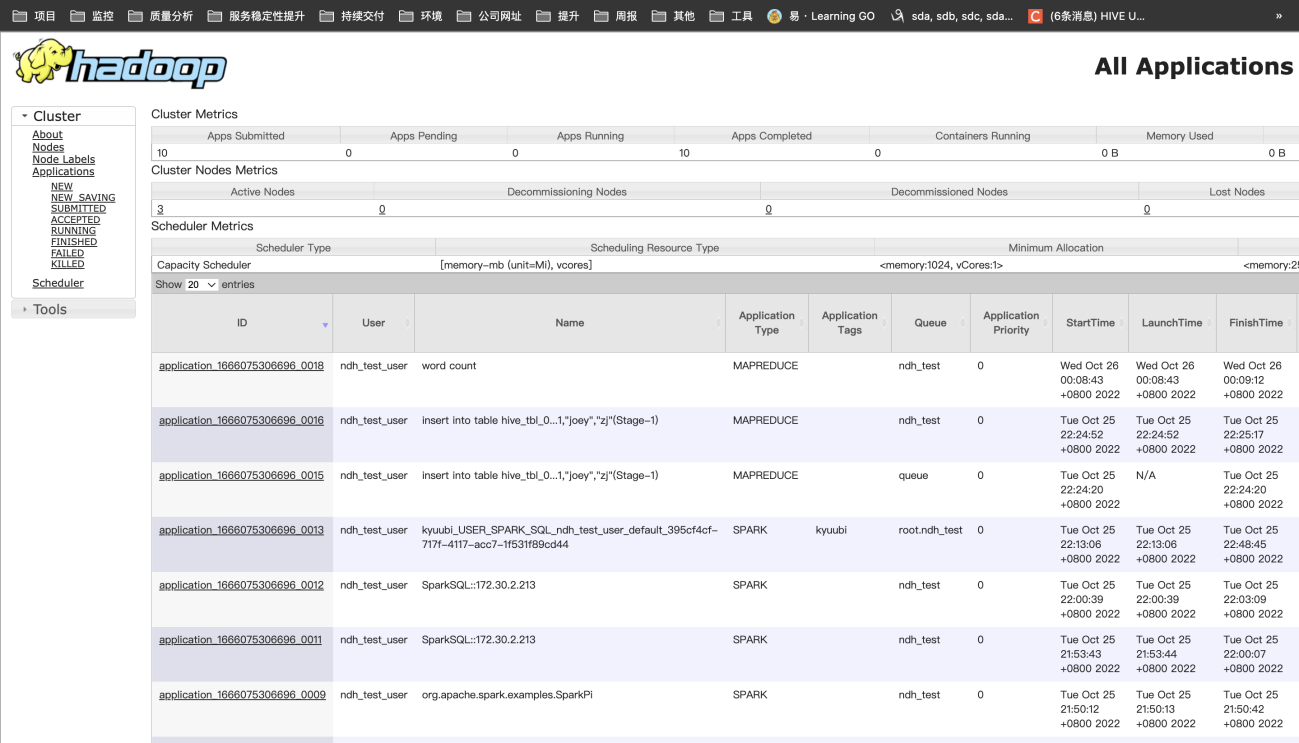

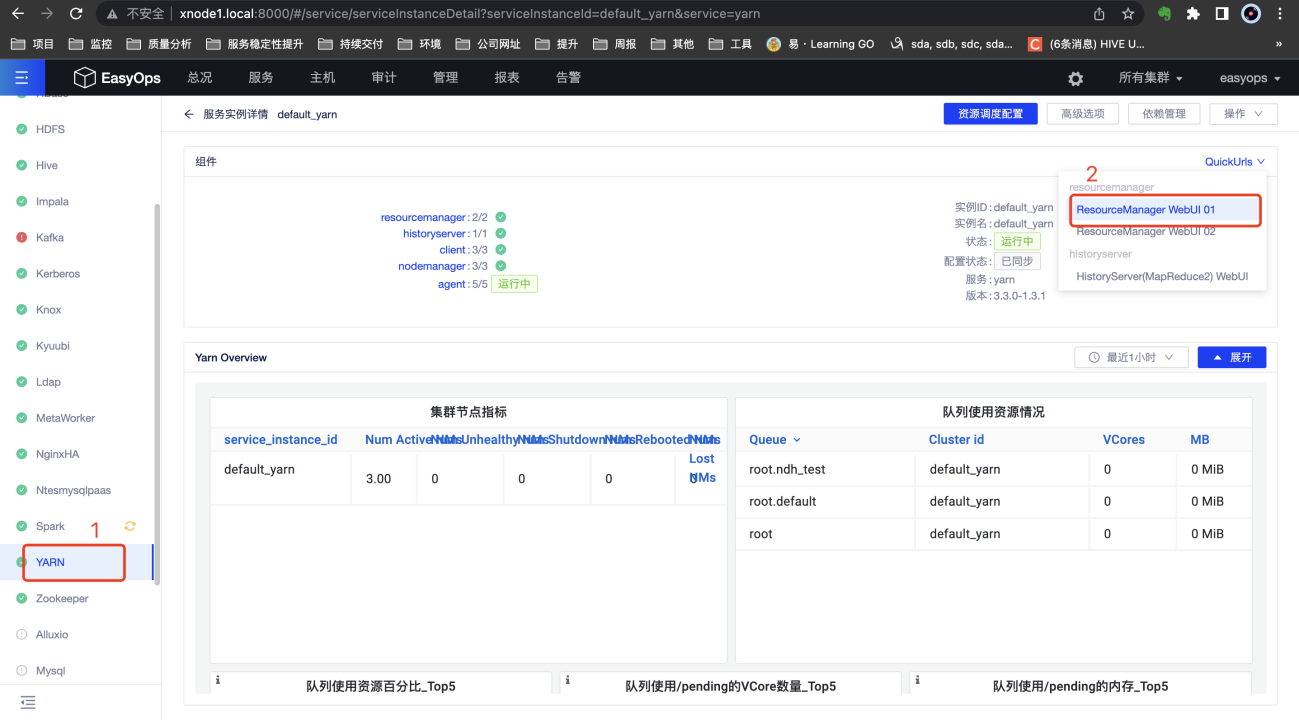

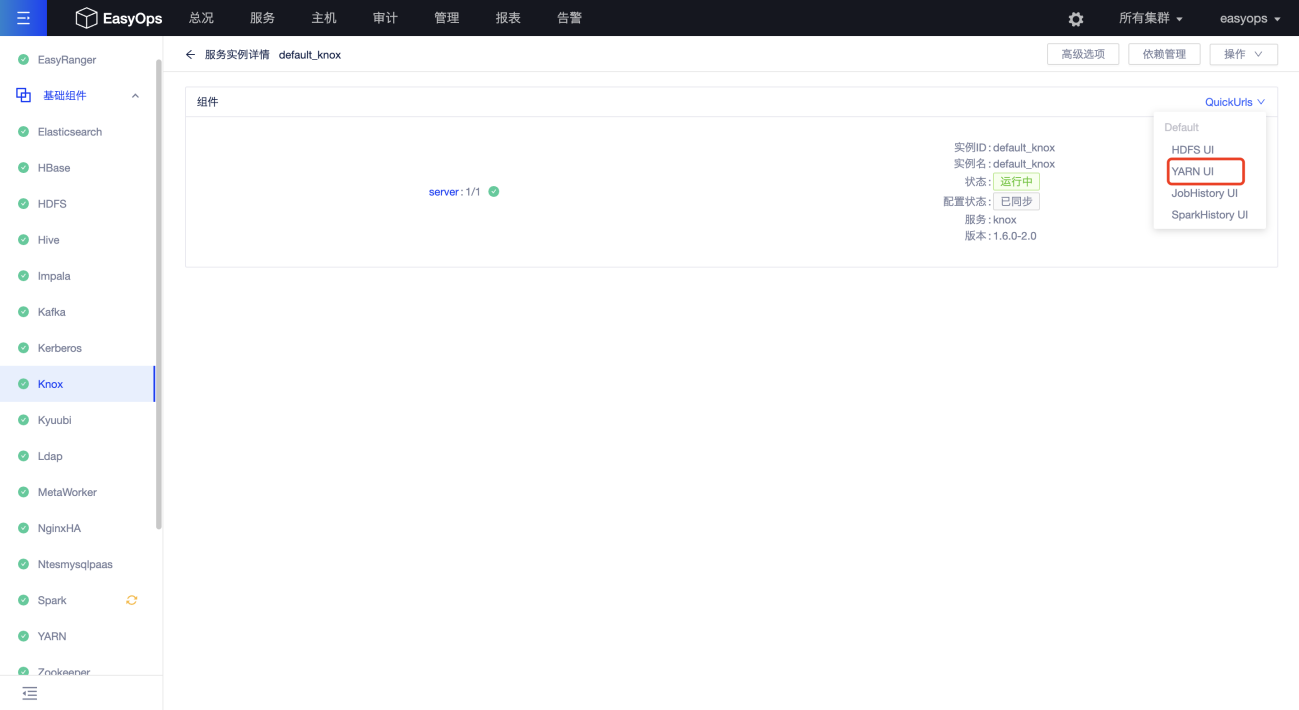

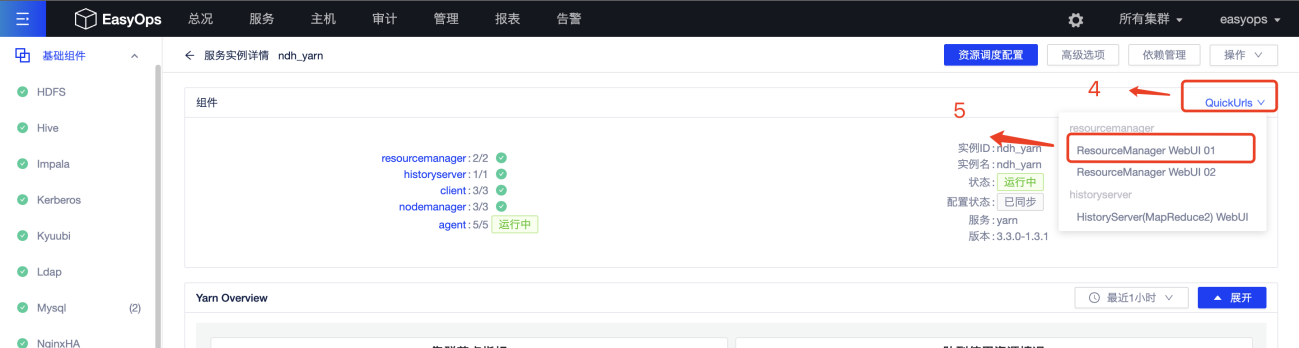

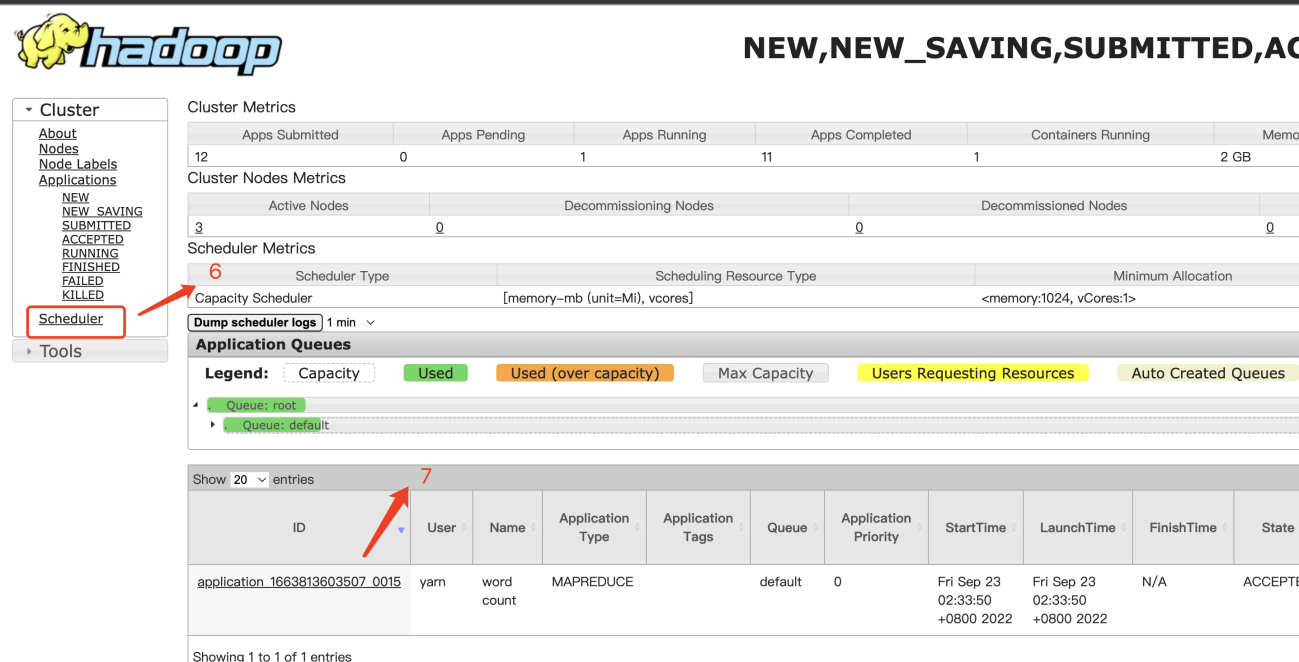

2. 执行过程中，打开YARN UI，查看正在运行中名为word count的MR任务

2.2.3 预期结果

1. 任务正常执行完成

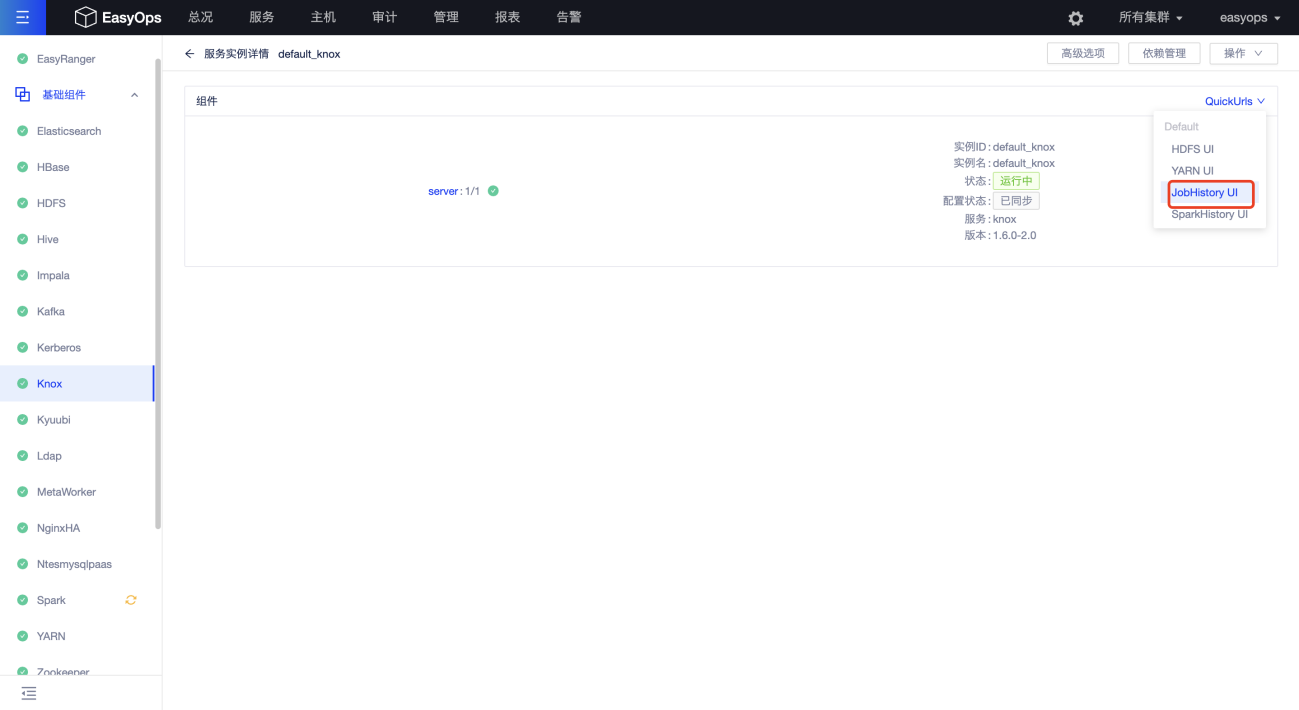

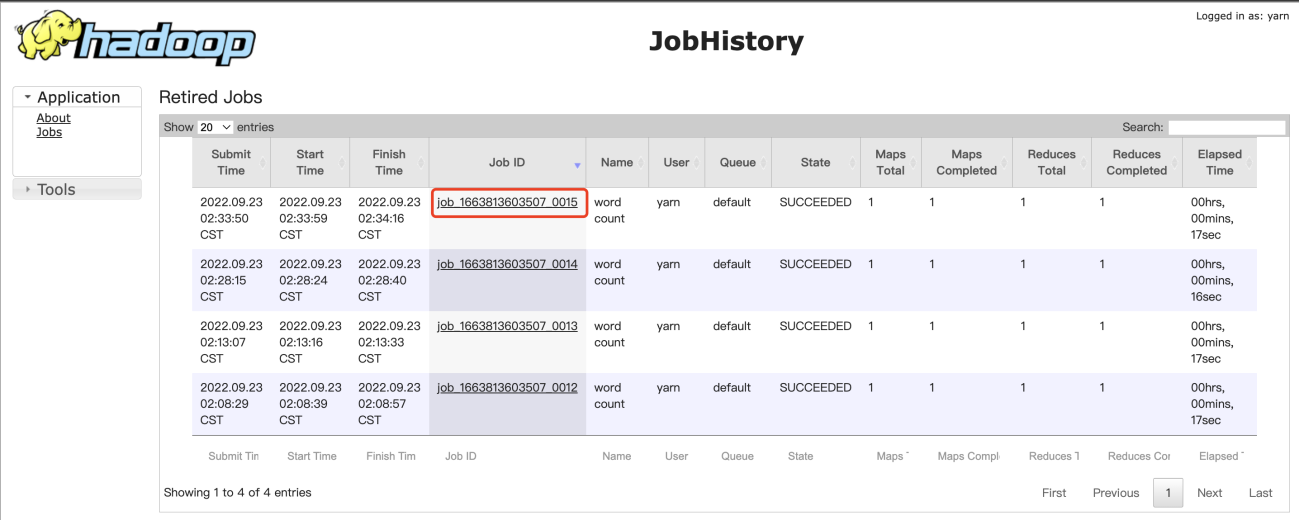

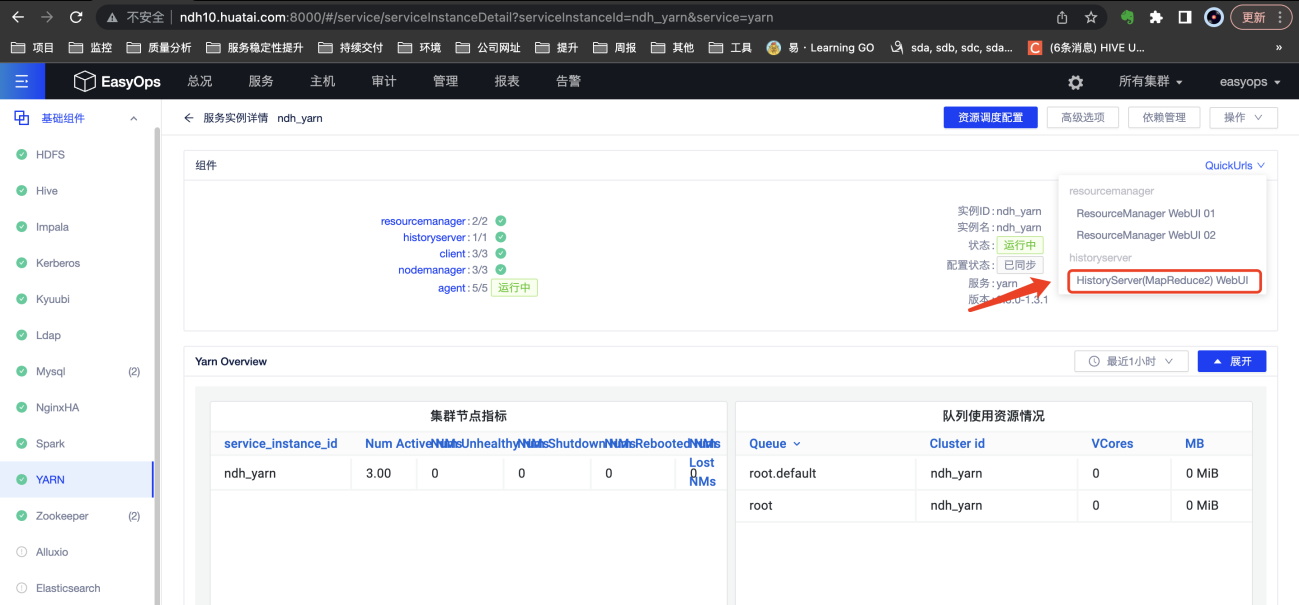

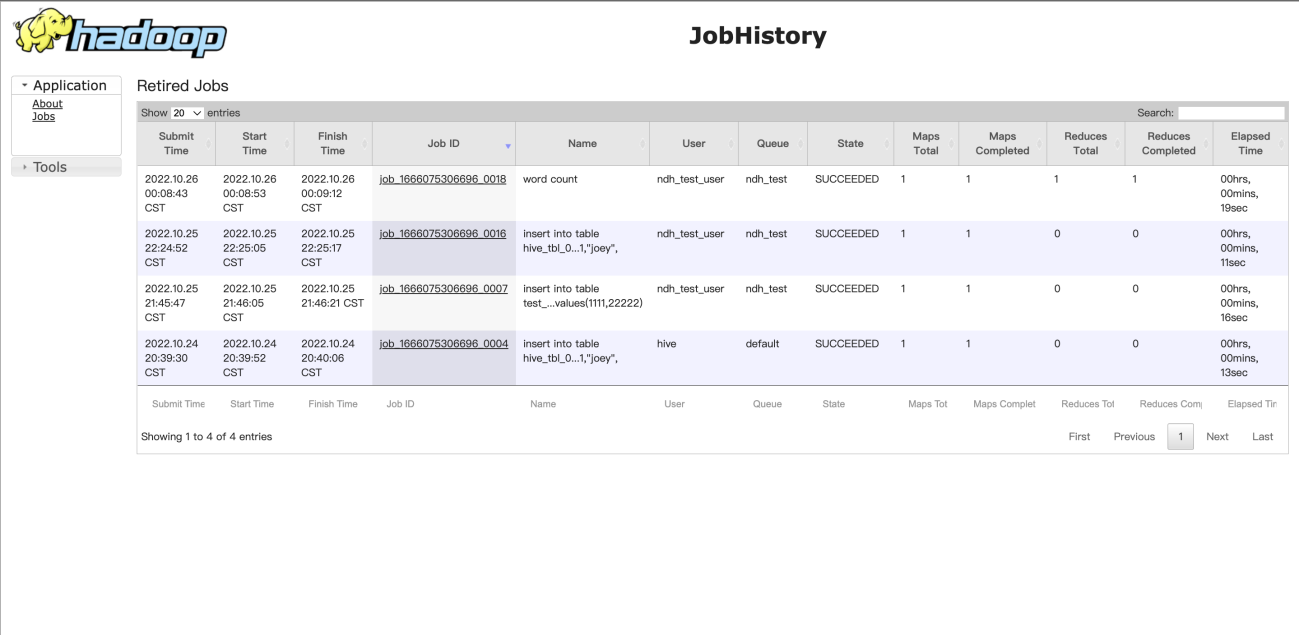

2. 通过MR HistoryServer正常查看该任务

2.3 Hive 服务功能测试

2.3.1 前置操作

1. 登录Hive Client 部署服务器 2. 执行kinit认证操作：通过ndh_test_user keytab认证

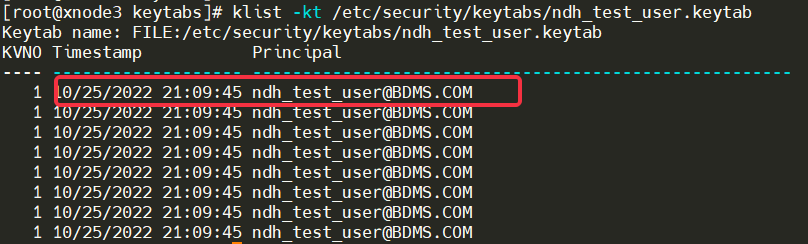

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab
# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab ndh_test_user@BDMS.COM

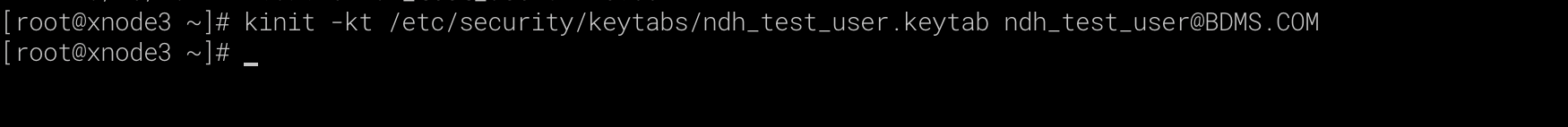

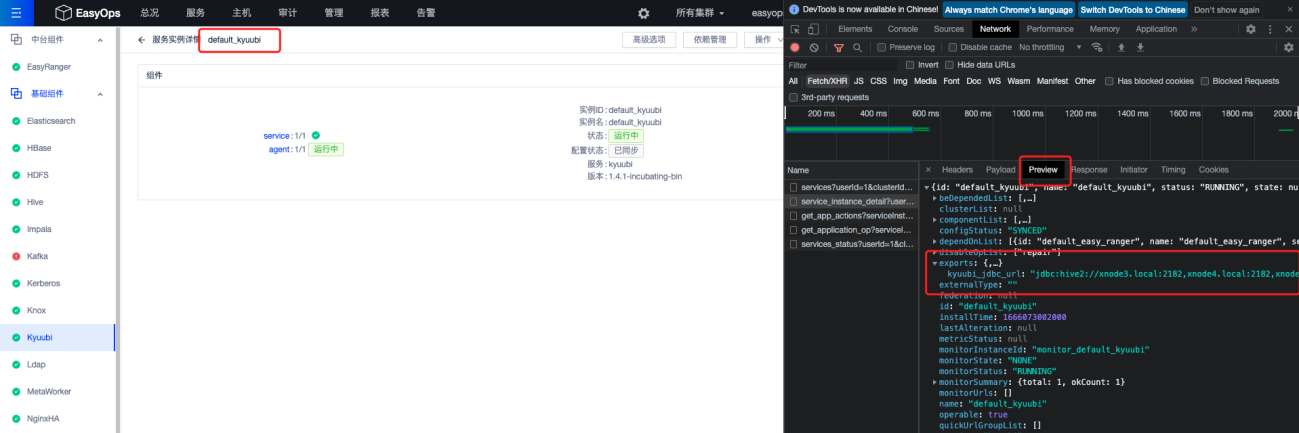

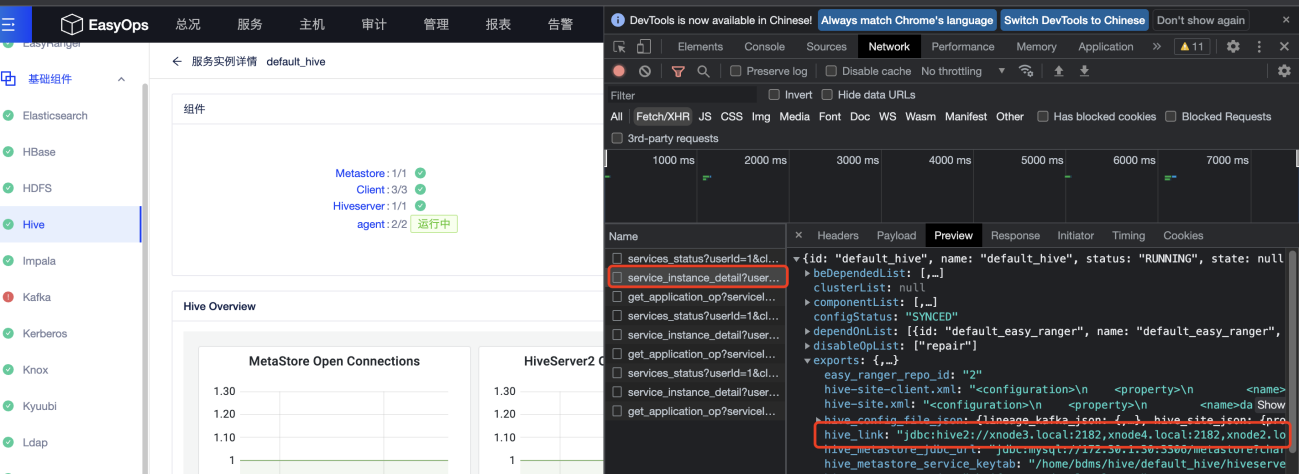

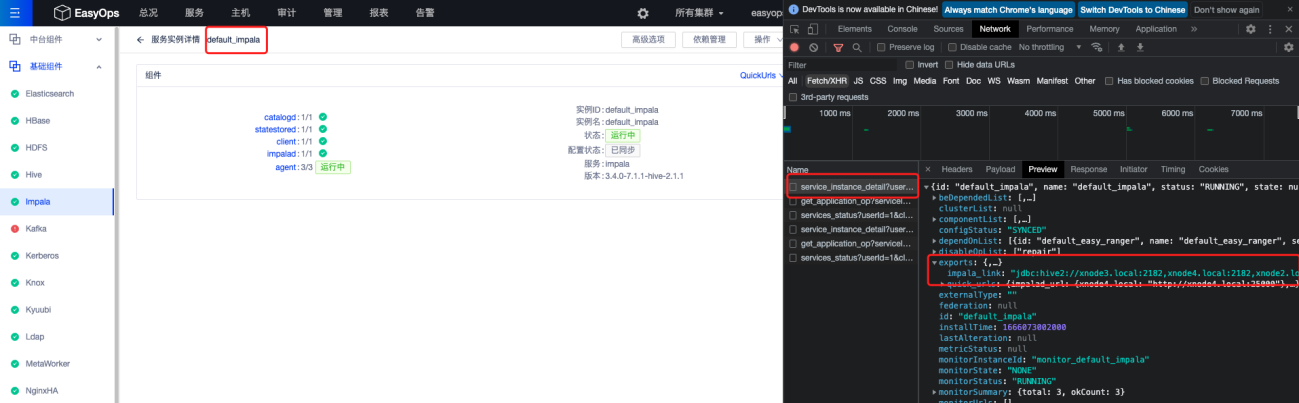

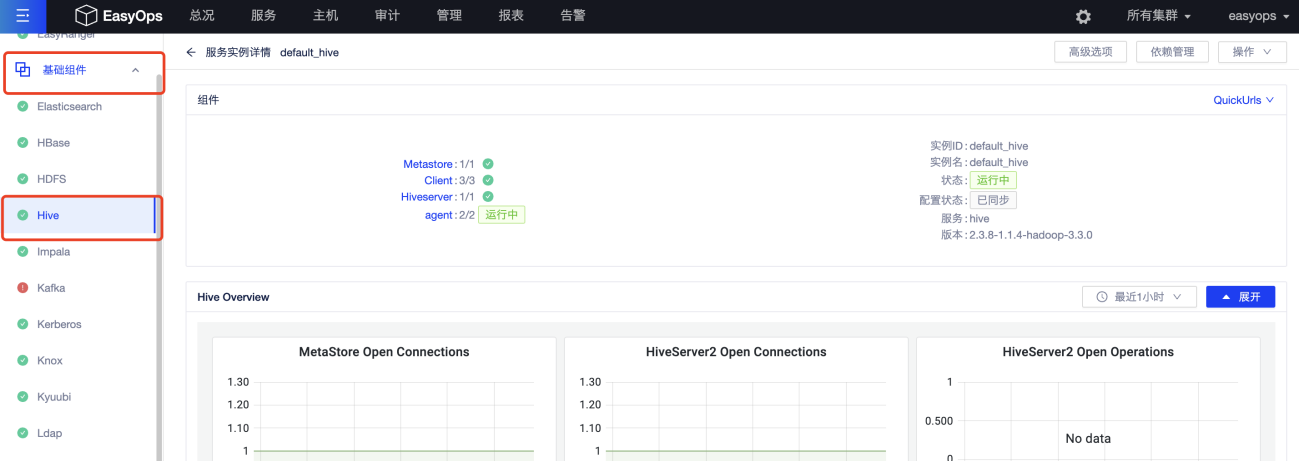

如下图所示 3. 通过EasyOps查看HiveServer2服务连接串，如下所示：

4. hive_link:"jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2;principal=hive/_HOST@BDMS.COM"

2.3.2 验证步骤

1. Hive基本功能验证

通过beeline连接HiveServer2，并执行以下SQL

# 通过beeline连接
beeline -u "jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2;principal=hive/_HOST@BDMS.COM?mapreduce.job.queuename=ndh_test"
# 连接成功后，分别执行以下SQL
use ndh_test_db;
create table hive_tbl_01(id int,name string,address string);
insert into table hive_tbl_01 select 1,"joey","zj";
select * from hive_tbl_01;
select count(1) from hive_tbl_01;
drop table hive_tbl_01;

执行记录如下（已过滤部分日志）：

[root@xnode3 ~]# beeline -u "jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2;principal=hive/_HOST@BDMS.COM?mapreduce.job.queuename=ndh_test"
Connecting to jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2;principal=hive/_HOST@BDMS.COM?mapreduce.job.queuename=ndh_test
log4j:WARN No appenders could be found for logger (org.apache.hive.jdbc.Utils).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Connected to: Apache Hive (version 2.3.8-1.1.0)
Driver: Hive JDBC (version 2.3.9)
Transaction isolation: TRANSACTION_REPEATABLE_READ
Beeline version 2.3.9 by Apache Hive
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> use ndh_test_db;
INFO  : Compiling command(queryId=hive_20221025222450_9e73cb27-151a-4ebc-b206-c95d76836ff2);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: use ndh_test_db
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222450_9e73cb27-151a-4ebc-b206-c95d76836ff2);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.072 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222450_9e73cb27-151a-4ebc-b206-c95d76836ff2); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:use ndh_test_db
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=hive_20221025222450_9e73cb27-151a-4ebc-b206-c95d76836ff2);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 0.04 seconds
INFO  : OK
No rows affected (0.197 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> create table hive_tbl_01(id int,name string,address string);
INFO  : Compiling command(queryId=hive_20221025222450_860859f9-02ae-44b3-86bb-3fd958789b09);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: create table hive_tbl_01(id int,name string,address string)
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222450_860859f9-02ae-44b3-86bb-3fd958789b09);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.164 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222450_860859f9-02ae-44b3-86bb-3fd958789b09); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:create table hive_tbl_01(id int,name string,address string)
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=hive_20221025222450_860859f9-02ae-44b3-86bb-3fd958789b09);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 0.084 seconds
INFO  : OK
No rows affected (0.261 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> insert into table hive_tbl_01 select 1,"joey","zj";
INFO  : Compiling command(queryId=hive_20221025222451_511cb5fa-4405-4cf7-957f-15ec1eedca51);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: insert into table hive_tbl_01 select 1,"joey","zj"
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:_c0, type:int, comment:null), FieldSchema(name:_c1, type:string, comment:null), FieldSchema(name:_c2, type:string, comment:null)], properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222451_511cb5fa-4405-4cf7-957f-15ec1eedca51);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.482 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222451_511cb5fa-4405-4cf7-957f-15ec1eedca51); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:insert into table hive_tbl_01 select 1,"joey","zj"
WARN  : Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
INFO  : Query ID = hive_20221025222451_511cb5fa-4405-4cf7-957f-15ec1eedca51
INFO  : Total jobs = 3
INFO  : Launching Job 1 out of 3
INFO  : Starting task [Stage-1:MAPRED] in serial mode
INFO  : Number of reduce tasks is set to 0 since there's no reduce operator
INFO  : number of splits:1
INFO  : Submitting tokens for job: job_1666075306696_0016
INFO  : Executing with tokens: [Kind: HDFS_DELEGATION_TOKEN, Service: ha-hdfs:easyops-cluster, Ident: (token for ndh_test_user: HDFS_DELEGATION_TOKEN owner=ndh_test_user, renewer=yarn, realUser=hive/xnode3.local@BDMS.COM, issueDate=1666707891779, maxDate=1667312691779, sequenceNumber=28, masterKeyId=9), Kind: HIVE_DELEGATION_TOKEN, Service: HiveServer2ImpersonationToken, Ident: 00 0d 6e 64 68 5f 74 65 73 74 5f 75 73 65 72 0d 6e 64 68 5f 74 65 73 74 5f 75 73 65 72 1a 68 69 76 65 2f 78 6e 6f 64 65 33 2e 6c 6f 63 61 6c 40 42 44 4d 53 2e 43 4f 4d 8a 01 84 0f 88 16 f4 8a 01 84 1e fb 2a f4 8e 1e e1 15]
INFO  : The url to track the job: http://xnode4.local:8088/proxy/application_1666075306696_0016/
INFO  : Starting Job = job_1666075306696_0016, Tracking URL = http://xnode4.local:8088/proxy/application_1666075306696_0016/
INFO  : Kill Command = /home/bdms/yarn/default_yarn/client/20221018113442217309170ee/current/bin/hadoop job  -kill job_1666075306696_0016
INFO  : Hadoop job information for Stage-1: number of mappers: 1; number of reducers: 0
INFO  : 2022-10-25 22:25:06,970 Stage-1 map = 0%,  reduce = 0%
INFO  : 2022-10-25 22:25:18,630 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 2.61 sec
INFO  : MapReduce Total cumulative CPU time: 2 seconds 610 msec
INFO  : Ended Job = job_1666075306696_0016
INFO  : Starting task [Stage-7:CONDITIONAL] in serial mode
INFO  : Stage-4 is selected by condition resolver.
INFO  : Stage-3 is filtered out by condition resolver.
INFO  : Stage-5 is filtered out by condition resolver.
INFO  : Starting task [Stage-4:MOVE] in serial mode
INFO  : Moving data to directory hdfs://easyops-cluster/user/warehouse/ndh_test_db.db/hive_tbl_01/.hive-staging_hive_2022-10-25_22-24-51_141_7072788565978475619-1/-ext-10000 from hdfs://easyops-cluster/user/warehouse/ndh_test_db.db/hive_tbl_01/.hive-staging_hive_2022-10-25_22-24-51_141_7072788565978475619-1/-ext-10002
INFO  : Starting task [Stage-0:MOVE] in serial mode
INFO  : Loading data to table ndh_test_db.hive_tbl_01 from hdfs://easyops-cluster/user/warehouse/ndh_test_db.db/hive_tbl_01/.hive-staging_hive_2022-10-25_22-24-51_141_7072788565978475619-1/-ext-10000
INFO  : Starting task [Stage-2:STATS] in serial mode
INFO  : Table ndh_test_db.hive_tbl_01 stats: [numFiles=1, numRows=1, totalSize=10, rawDataSize=9]
INFO  : MapReduce Jobs Launched:
INFO  : Stage-Stage-1: Map: 1   Cumulative CPU: 2.61 sec   HDFS Read: 5291 HDFS Write: 89 SUCCESS
INFO  : Total MapReduce CPU Time Spent: 2 seconds 610 msec
INFO  : Completed executing command(queryId=hive_20221025222451_511cb5fa-4405-4cf7-957f-15ec1eedca51);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 28.657 seconds
INFO  : OK
No rows affected (29.15 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> select * from hive_tbl_01;
INFO  : Compiling command(queryId=hive_20221025222520_c08b09a4-3c9c-4373-9a9d-5dcd80316a05);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: select * from hive_tbl_01
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:hive_tbl_01.id, type:int, comment:null), FieldSchema(name:hive_tbl_01.name, type:string, comment:null), FieldSchema(name:hive_tbl_01.address, type:string, comment:null)], properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222520_c08b09a4-3c9c-4373-9a9d-5dcd80316a05);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.348 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222520_c08b09a4-3c9c-4373-9a9d-5dcd80316a05); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:select * from hive_tbl_01
INFO  : Completed executing command(queryId=hive_20221025222520_c08b09a4-3c9c-4373-9a9d-5dcd80316a05);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 0.0 seconds
INFO  : OK
+-----------------+-------------------+----------------------+
| hive_tbl_01.id  | hive_tbl_01.name  | hive_tbl_01.address  |
+-----------------+-------------------+----------------------+
| 1               | joey              | zj                   |
+-----------------+-------------------+----------------------+
1 row selected (0.479 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> select count(1) from hive_tbl_01;
INFO  : Compiling command(queryId=hive_20221025222520_23c739ab-f970-4371-bf43-3c75bc6d4c25);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: select count(1) from hive_tbl_01
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:_c0, type:bigint, comment:null)], properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222520_23c739ab-f970-4371-bf43-3c75bc6d4c25);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.285 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222520_23c739ab-f970-4371-bf43-3c75bc6d4c25); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:select count(1) from hive_tbl_01
INFO  : Completed executing command(queryId=hive_20221025222520_23c739ab-f970-4371-bf43-3c75bc6d4c25);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 0.0 seconds
INFO  : OK
+------+
| _c0  |
+------+
| 1    |
+------+
1 row selected (0.301 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> drop table hive_tbl_01;
INFO  : Compiling command(queryId=hive_20221025222521_d851f513-dc69-47b5-b3a2-1c247b6c68f3);USER_NAME:ndh_test_user;IP:172.30.2.213;QUERY_STRING: drop table hive_tbl_01
INFO  : Semantic Analysis Completed
INFO  : Returning Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=hive_20221025222521_d851f513-dc69-47b5-b3a2-1c247b6c68f3);USER_NAME:ndh_test_user;IP:172.30.2.213;Time taken: 0.059 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=hive_20221025222521_d851f513-dc69-47b5-b3a2-1c247b6c68f3); USER_NAME=ndh_test_user;IP=172.30.2.213;QUERY_STRING:drop table hive_tbl_01
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=hive_20221025222521_d851f513-dc69-47b5-b3a2-1c247b6c68f3);USER_NAME=ndh_test_user;IP=172.30.2.213;Time taken: 0.141 seconds
INFO  : OK
No rows affected (0.21 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>

2.3.3 预期结果

1. SQL均执行成功；

2.4 Spark 服务功能测试

2.4.1 前置操作

1. 登录Spark Client部署服务器

2. 执行kinit认证操作：通过ndh_test_user keytab认证

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab

# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab ndh_test_user@BDMS.COM

如下图所示 3. 查看Spark Client部署目录

查看EasyOps服务部署根目录（BASE_DIR），如/home/bdms

进入BASE_DIR,并逐级找到Spark Client部署目录（其中202210181134422225d2ebefe为组件实例名，不同机器上不同），如下所示的/home/bdms/spark2/default_spark2/client/202210181134422225d2ebefe/

# 替换/home/bdms为上述获取的EasyOps服务部署的根目录BASE_DIR
[root@ndh10 bdms]# cd /home/bdms/
[root@ndh10 bdms]# ls
hadoop  hdfs  impala  java  knox  kyuubi  logs  monitor  nginx_ha  spark2  yarn  zookeeper
[root@ndh10 bdms]# cd spark2
[root@ndh10 spark2]# ls
default_spark2  package_shared
[root@ndh10 spark2]# cd ndh_spark2/
[root@ndh10 ndh_spark2]# ls
client  jobhistoryserver
[root@ndh10 ndh_spark2]# cd client/
[root@ndh10 client]# ls
202210181134422225d2ebefe
# 此处若组件安装多次，则选择目录创建时间最近的
[root@ndh10 client]# cd 202210181134422225d2ebefe/
[root@ndh10 202210181134422225d2ebefe]# ls
config  current  data  keytab  logs  package  pid  ranger-0.5.4-1.1.3.5-spark-plugin
[root@ndh10 202210181134422225d2ebefe]# pwd
/home/bdms/spark2/default_spark2/client/202210181134422225d2ebefe

2.4.2 验证步骤

1. 验证Spark client模式JAR任务运行，需通过--指定队列

# 指定SPARK_EXAMPLE_JAR_DIR为上述查看的Spark Client部署目录
SPARK_EXAMPLE_JAR_DIR=/home/bdms/spark2/default_spark2/client/202210181134422225d2ebefe
spark-submit --class org.apache.spark.examples.SparkPi --master yarn --deploy-mode client --driver-memory 1g --executor-memory 1g --executor-cores 1 --queue ndh_test ${SPARK_EXAMPLE_JAR_DIR}/current/examples/jars/spark-examples_*.jar 100

2. 验证Spark cluster模式JAR任务运行，需通过--指定队列

# 指定SPARK_EXAMPLE_JAR_DIR为上述查看的Spark Client部署目录
SPARK_EXAMPLE_JAR_DIR=/home/bdms/spark2/default_spark2/client/202210181134422225d2ebefe
spark-submit --class org.apache.spark.examples.SparkPi --master yarn --deploy-mode cluster --driver-memory 1g --executor-memory 1g --executor-cores 1 --queue ndh_test ${SPARK_EXAMPLE_JAR_DIR}/current/examples/jars/spark-examples_*.jar 100

3. 验证spark-sql 任务执行，需要通过--指定队列

# 执行spark-sql
spark-sql --queue ndh_test

# 执行以下SQL，ndh_test_db 前置操作已经创建
use ndh_test_db;
create table spark_tbl_01(id int,name string,address string);
insert into table spark_tbl_01 select 1,"joey","zj";
select * from spark_tbl_01;
select count(1) from spark_tbl_01;
drop table spark_tbl_01;

执行结果如下所示

spark-sql> use ndh_test_db;
Time taken: 0.086 seconds
spark-sql> create table spark_tbl_01(id int,name string,address string);
Time taken: 0.684 seconds
spark-sql> insert into table spark_tbl_01 select 1,"joey","zj";
2022-10-25T22:01:53.893+0800: [GC (Metadata GC Threshold)
Desired survivor size 53477376 bytes, new threshold 3 (max 15)
[PSYoungGen: 431034K->43212K(1073152K)] 465081K->82547K(1416192K), 0.0683764 secs] [Times: user=0.11 sys=0.09, real=0.06 secs]
2022-10-25T22:01:53.962+0800: [Full GC (Metadata GC Threshold) [PSYoungGen: 43212K->0K(1073152K)] [ParOldGen: 39334K->56988K(222720K)] 82547K->56988K(1295872K), [Metaspace: 122808K->122798K(1163264K)], 0.1926002 secs] [Times: user=0.67 sys=0.05, real=0.20 secs]
Time taken: 8.103 seconds
spark-sql> select * from spark_tbl_01;
1        joey        zj
Time taken: 1.181 seconds, Fetched 1 row(s)
spark-sql> select count(1) from spark_tbl_01;
1
Time taken: 0.822 seconds, Fetched 1 row(s)
spark-sql> drop table spark_tbl_01;
Time taken: 0.627 seconds

2.4.3 预期结果

1. 任务均正常执行成功。

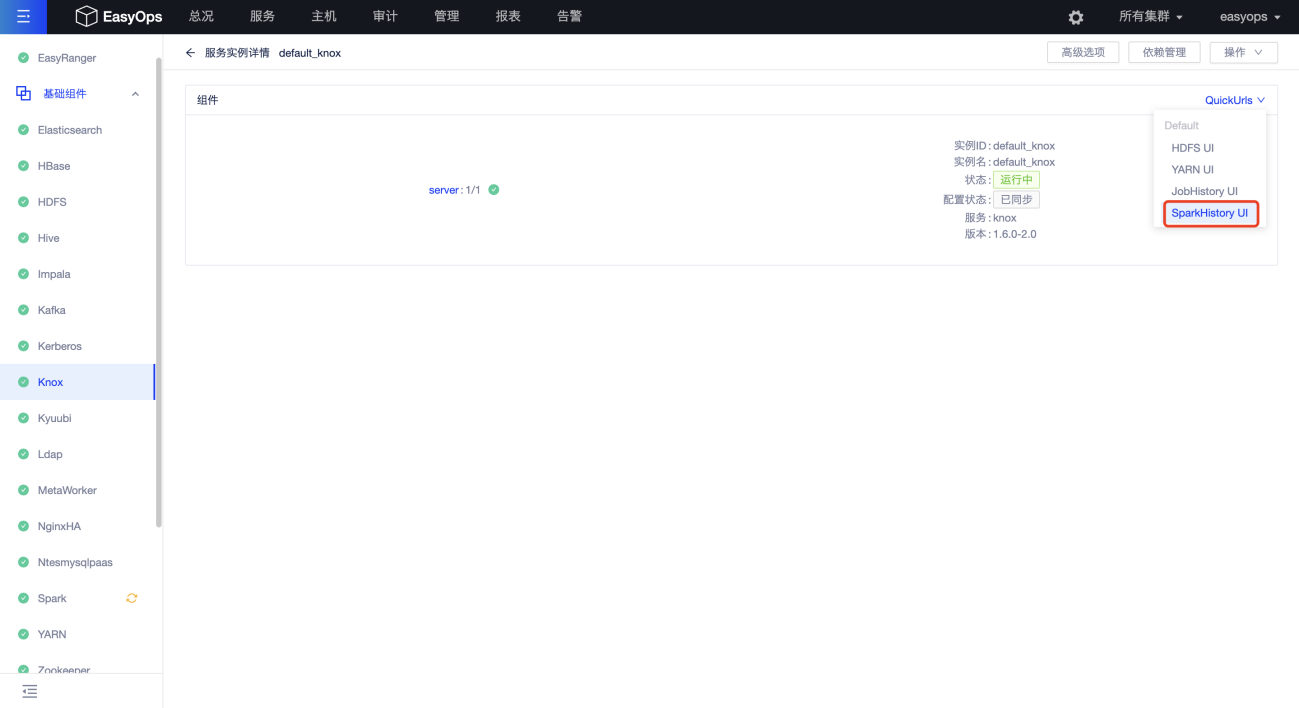

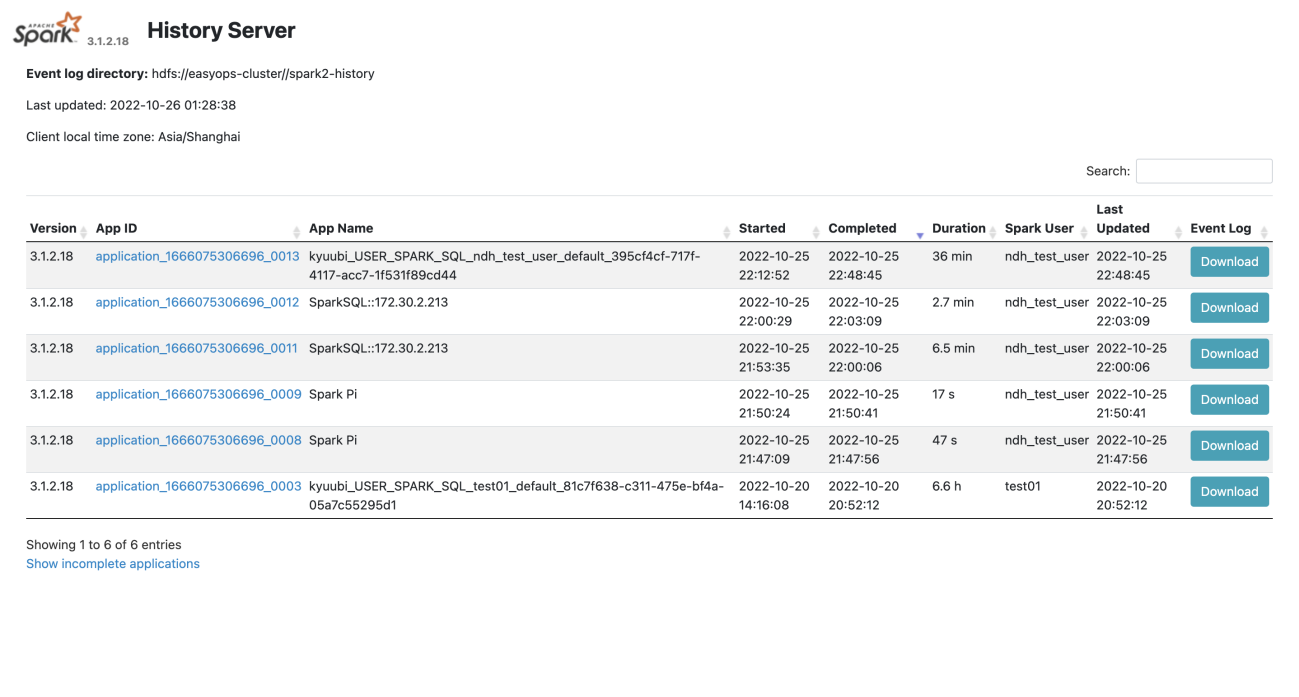

2. 进入Spark HistoryServer 可正常查看已运行完成的任务

2.5 Kyuubi 服务功能测试

2.5.1 前置操作

1. 登录Spark Client部署服务器 2. 执行kinit认证操作：通过ndh_test_user keytab认证

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab

# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab ndh_test_user@BDMS.COM

如下图所示

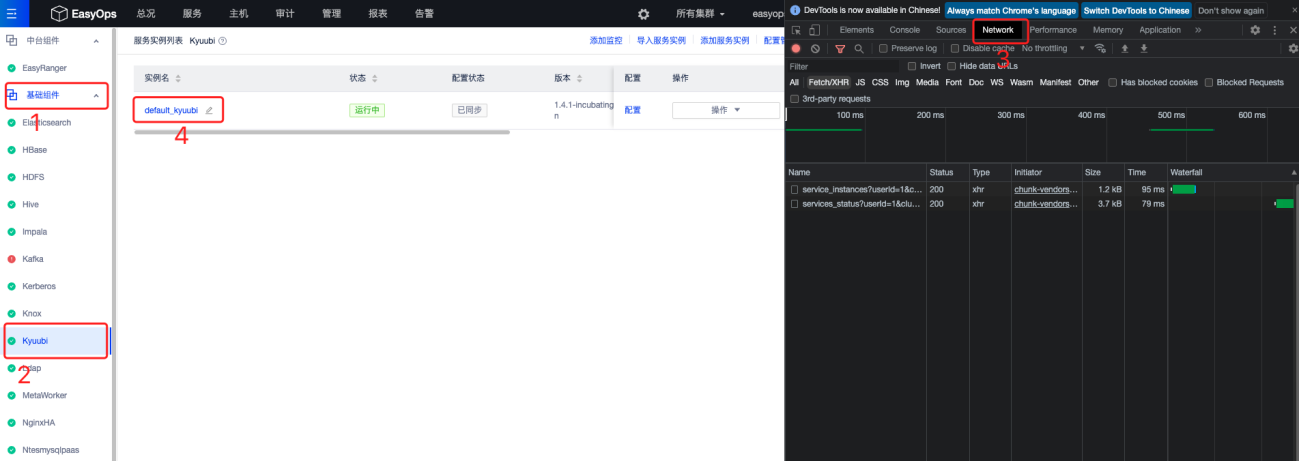

查看Spark Client部署目录获取Kyuubi JDBC连接串通过EasyOps查看Kyuubi服务连接串，如下所示： kyuubi_jdbc_url："jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=kyuubi-cluster;"

2.5.2 验证步骤

1. Kyuubi基本功能：

通过beeline连接Kyuubi，并执行以下SQL

# 通过beeline连接
beeline -u "jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=kyuubi-cluster;principal=hive/_HOST@CDH.HUATAI.COM;#spark.yarn.queue=root.ndh_test"

# 连接成功后，分别执行以下SQL ndh_test_db 前置操作已经创建
use ndh_test_db;
create table kyuubi_tbl_01(id int,name string,address string);
insert into table kyuubi_tbl_01 select 1,"joey","zj";
select * from kyuubi_tbl_01;
select count(1) from kyuubi_tbl_01;
drop table kyuubi_tbl_01;

执行记录如下（已过滤部分日志）：

[root@xnode3 ~]# beeline -u "jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=kyuubi-cluster;principal=hive/_HOST@CDH.HUATAI.COM;#spark.yarn.queue=root.ndh_test"
Connecting to jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=kyuubi-cluster;principal=hive/_HOST@CDH.HUATAI.COM;#spark.yarn.queue=root.ndh_test
log4j:WARN No appenders could be found for logger (org.apache.hive.jdbc.Utils).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Connected to: Apache Kyuubi (Incubating) (version 1.4.1-incubating)
Driver: Hive JDBC (version 2.3.9)
Transaction isolation: TRANSACTION_REPEATABLE_READ
Beeline version 2.3.9 by Apache Hive
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> use ndh_test_db;
2022-10-25 22:14:47.713 INFO credentials.HadoopFsDelegationTokenProvider: getting token owned by ndh_test_user for: DFS[DFSClient[clientName=DFSClient_NONMAPREDUCE_465453460_206, ugi=ndh_test_user (auth:PROXY) via hive/xnode3.local@BDMS.COM (auth:KERBEROS)]]
+---------+
| Result  |
+---------+
+---------+
No rows selected (0.456 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> create table kyuubi_tbl_01(id int,name string,address string);
2022-10-25 22:14:54.578 INFO credentials.HadoopCredentialsManager: Send new credentials with epoch 0 to SQL engine through session 53ab3c3f-a179-43a5-b1a4-5fa9f70d5fb6
2022-10-25 22:14:54.625 INFO credentials.HadoopCredentialsManager: Update session credentials epoch from -1 to 0
+---------+
| Result  |
+---------+
+---------+
No rows selected (0.824 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> insert into table kyuubi_tbl_01 select 1,"joey","zj";
2022-10-25 22:14:54.653 INFO operation.ExecuteStatement: Processing ndh_test_user's query[55ed97c3-6e2d-4895-9a94-6d7e811a3140]: INITIALIZED_STATE -> PENDING_STATE, statement: insert into table kyuubi_tbl_01 select 1,"joey","zj"
2022-10-25 22:14:54.658 INFO operation.ExecuteStatement: Processing ndh_test_user's query[55ed97c3-6e2d-4895-9a94-6d7e811a3140]: PENDING_STATE -> RUNNING_STATE, statement: insert into table kyuubi_tbl_01 select 1,"joey","zj"
2022-10-25 22:14:59.388 INFO operation.ExecuteStatement: Processing ndh_test_user's query[55ed97c3-6e2d-4895-9a94-6d7e811a3140]: RUNNING_STATE -> FINISHED_STATE, statement: insert into table kyuubi_tbl_01 select 1,"joey","zj", time taken: 4.731 seconds
+---------+
| Result  |
+---------+
+---------+
No rows selected (4.761 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> select * from kyuubi_tbl_01;
2022-10-25 22:15:00.655 INFO operation.ExecuteStatement: Processing ndh_test_user's query[da7e9025-3be4-458e-829b-01d796493248]: RUNNING_STATE -> FINISHED_STATE, statement: select * from kyuubi_tbl_01, time taken: 1.224 seconds
+-----+-------+----------+
| id  | name  | address  |
+-----+-------+----------+
| 1   | joey  | zj       |
+-----+-------+----------+
1 row selected (1.256 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> select count(1) from kyuubi_tbl_01;
2022-09-23 09:50:35.358 INFO operation.ExecuteStatement: Processing hive's query[b68579be-bfd0-44ab-9ebf-520199ef5876]: RUNNING_STATE -> FINISHED_STATE, statement: select count(1) from kyuubi_tbl_01, time taken: 0.719 seconds
2022-10-25 22:15:01.640 INFO operation.ExecuteStatement: Query[effb801c-53ad-4c7b-adf1-0fe4f934756b] in FINISHED_STATE
2022-10-25 22:15:01.641 INFO operation.ExecuteStatement: Processing ndh_test_user's query[effb801c-53ad-4c7b-adf1-0fe4f934756b]: RUNNING_STATE -> FINISHED_STATE, statement: select count(1) from kyuubi_tbl_01, time taken: 0.939 seconds
+-----------+
| count(1)  |
+-----------+
| 1         |
+-----------+
1 row selected (0.974 seconds)
0: jdbc:hive2://xnode3.local:2182,xnode4.loca>
0: jdbc:hive2://xnode3.local:2182,xnode4.loca> drop table kyuubi_tbl_01;
+---------+
| Result  |
+---------+
+---------+
No rows selected (0.244 seconds)
0: jdbc:hive2://ndh10.huatai.com:2182,ndh11.h>

2.5.3 预期结果

1. SQL均执行成功；

2.6 Impala 服务功能测试

2.6.1 前置操作

1. 登录Hive Client 部署服务器

2. 执行kinit认证操作：通过ndh_test_user keytab认证

# 执行klist查看Principal
klist -kt /etc/security/keytabs/ndh_test_user.keytab

# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/ndh_test_user.keytab ndh_test_user@BDMS.COM

如下图所示 3. 通过EasyOps查看Impala Beeline服务连接串，如下所示： impala_link:"jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=impala-ha/hiveserver2;principal=impala/_HOST@BDMS.COM"

2.6.2 验证步骤

1. Impala基本功能验证

通过beeline连接Impalad，并执行以下SQL
# 通过beeline连接
beeline -u "jdbc:hive2://xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=impala-ha/hiveserver2;principal=impala/_HOST@BDMS.COM"

# 连接成功后，分别执行以下SQL
use ndh_test_db;
create table impala_tbl_01(id int,name string,address string);
insert into table impala_tbl_01 select 1,"joey","zj";
select * from impala_tbl_01;
select count(1) from impala_tbl_01;
drop table impala_tbl_01;

2.7 HBase 服务功能测试

2.7.1 前置操作

1. 登录HBase Client部署服务器

2. 执行kinit认证操作

# 执行klist查看Principal
klist -kt /etc/security/keytabs/hbase/hbase.keytab

# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/hbase/hbase.keytab hbase/xnode2.local@BDMS.COM

3. 查看HBase Client部署目录

查看EasyOps服务部署根目录（BASE_DIR），如/home/bdms 进入BASE_DIR,并逐级找到HBase Client部署目录（其中/20221018113442217309170ee为组件实例名，不同机器上不同），如下所示的/home/bdms/hbase/default_hbase/client/20221018113442223fde7b95f

# 替换/home/bdms为上述获取的EasyOps服务部署的根目录BASE_DIR
[root@xnode2 ~]# cd /home/bdms/
[root@xnode2 bdms]# ls
elasticsearch  hbase  hdfs  hive  java  kafka  kerberos  ldap  logs  monitor  ntesmysqlpaas  spark2  yarn  zookeeper
[root@xnode2 bdms]# cd hbase/
[root@xnode2 hbase]# ls
default_hbase  package_shared
[root@xnode2 hbase]# cd default_hbase/
[root@xnode2 default_hbase]# ls
client  regionserver
[root@xnode2 default_hbase]# cd client/
[root@xnode2 client]# ls
20221018113442223fde7b95f
[root@xnode2 client]# cd 20221018113442223fde7b95f/
[root@xnode2 20221018113442223fde7b95f]# ls
config  current  data  keytab  logs  package  pid
[root@xnode2 20221018113442223fde7b95f]# pwd
/home/bdms/hbase/default_hbase/client/20221018113442223fde7b95f

2.7.2 验证步骤

1. 通过hbase shell连接HBase服务

HBASE_HOME=/home/bdms/hbase/default_hbase/client/20221018113442223fde7b95f
export HBASE_CONF_DIR=${HBASE_HOME}/config
${HBASE_HOME}/current/bin/hbase shell

2. 验证HBase基本功能

# 1.创建namespaces:
create_namespace 'test_ndh_hbase'

# 2. 创建表：
create 'test_ndh_hbase:student','id','address','info'

# 3. 插入数据：
put 'test_ndh_hbase:student', 'Elvis', 'id', '22'
put 'test_ndh_hbase:student', 'Elvis','info:age', '26'
put 'test_ndh_hbase:student', 'Elvis','info:birthday', '1988-09-14 '
put 'test_ndh_hbase:student', 'Elvis','info:industry', 'it'
put 'test_ndh_hbase:student', 'Elvis','address:city', 'beijing'
put 'test_ndh_hbase:student', 'Elvis','address:country', 'china'

# 4. 查询表
scan 'test_ndh_hbase:student'

# 5. 删除表
disable 'test_ndh_hbase:student'
drop 'test_ndh_hbase:student'
exists 'test_ndh_hbase:student'

# 6. 删除namespaces
drop_namespace  'test_ndh_hbase'

执行记录如下：

[root@xnode2 bin]# HBASE_HOME=/home/bdms/hbase/default_hbase/client/20221018113442223fde7b95f
[root@xnode2 bin]# export HBASE_CONF_DIR=${HBASE_HOME}/config
[root@xnode2 bin]# ${HBASE_HOME}/current/bin/hbase shell
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/home/bdms/hdfs/package_shared/hadoop-3.3.0-1.3.1/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/home/bdms/hbase/package_shared/hbase-2.2.6/lib/client-facing-thirdparty/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
For Reference, please visit: http://hbase.apache.org/2.0/book.html#shell
Version 2.2.6, r88c9a386176e2c2b5fd9915d0e9d3ce17d0e456e, Tue Sep 15 17:36:14 CST 2020
Took 0.0053 seconds
hbase(main):001:0> create_namespace 'test_ndh_hbase'
Took 1.1733 seconds
hbase(main):002:0> create 'test_ndh_hbase:student','id','address','info'
Created table test_ndh_hbase:student
Took 1.3291 seconds
=> Hbase::Table - test_ndh_hbase:student
hbase(main):003:0>
hbase(main):004:0*
hbase(main):005:0* put 'test_ndh_hbase:student', 'Elvis', 'id', '22'
put 'test_ndh_hbase:student', 'Elvis','info:age', '26'
put 'test_ndh_hbase:student', 'Elvis','info:birthday', '1988-09-14 '
put 'test_ndh_hbase:student', 'Elvis','info:industry', 'it'
put 'test_ndh_hbase:student', 'Elvis','address:city', 'beijing'
Took 0.2563 seconds
put 'test_ndh_hbase:student', 'Elvis','address:country', 'china'hbase(main):006:0> put 'test_ndh_hbase:student', 'Elvis','info:age', '26'
Took 0.0084 seconds
hbase(main):007:0> put 'test_ndh_hbase:student', 'Elvis','info:birthday', '1988-09-14 '
Took 0.0088 seconds
hbase(main):008:0> put 'test_ndh_hbase:student', 'Elvis','info:industry', 'it'
Took 0.0064 seconds
hbase(main):009:0> put 'test_ndh_hbase:student', 'Elvis','address:city', 'beijing'
Took 0.0081 seconds
hbase(main):010:0> put 'test_ndh_hbase:student', 'Elvis','address:country', 'china'
Took 0.0087 seconds
hbase(main):011:0>
hbase(main):012:0* scan 'test_ndh_hbase:student'
ROW                                      COLUMN+CELL
 Elvis                                   column=address:city, timestamp=1666719524530, value=beijing
 Elvis                                   column=address:country, timestamp=1666719525159, value=china
 Elvis                                   column=id:, timestamp=1666719524389, value=22
 Elvis                                   column=info:age, timestamp=1666719524430, value=26
 Elvis                                   column=info:birthday, timestamp=1666719524465, value=1988-09-14
 Elvis                                   column=info:industry, timestamp=1666719524502, value=it
1 row(s)
Took 0.0411 seconds
hbase(main):013:0> disable 'test_ndh_hbase:student'
drop 'test_ndh_hbase:student'
exists 'test_ndh_hbase:student'
Took 0.8262 seconds
hbase(main):014:0> drop 'test_ndh_hbase:student'
Took 0.4985 seconds
hbase(main):015:0> exists 'test_ndh_hbase:student'
Table test_ndh_hbase:student does not exist
Took 0.0120 seconds
=> false
hbase(main):016:0>
hbase(main):017:0* drop_namespace  'test_ndh_hbase'
Took 0.1972 seconds
hbase(main):018:0>

2.8 Kafka 服务功能测试

2.8.1 前置操作

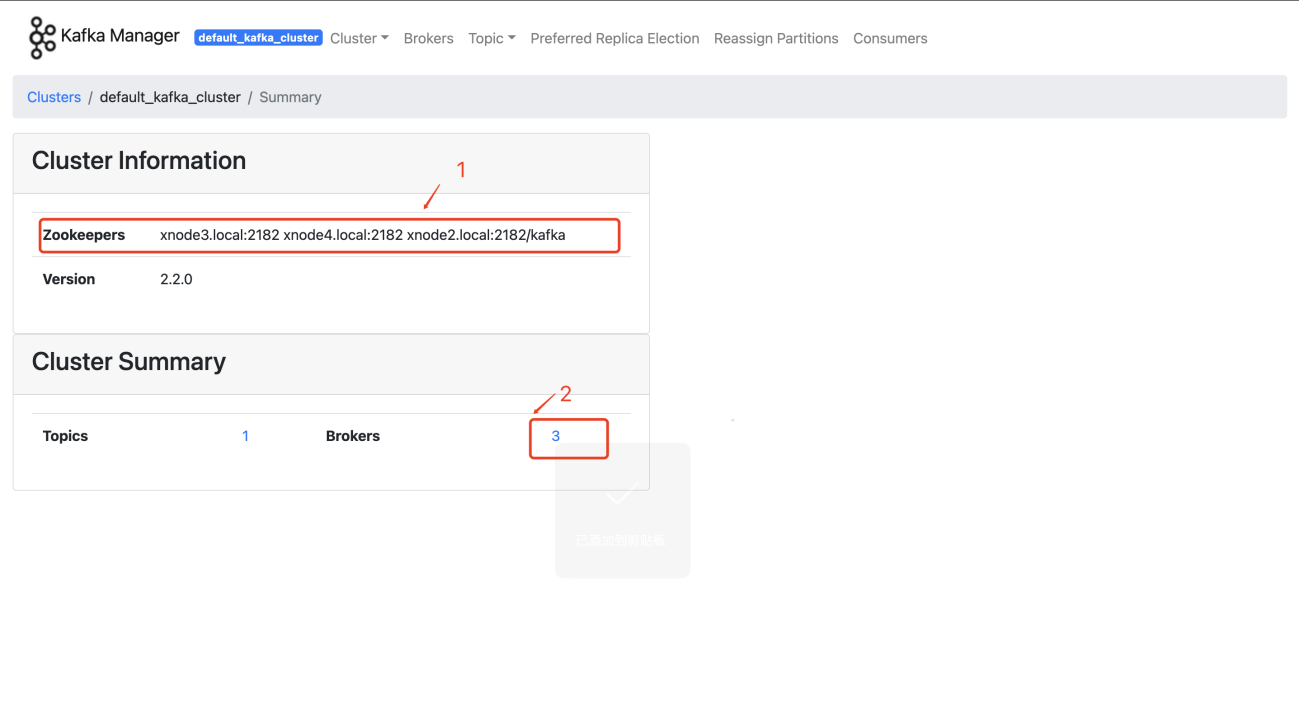

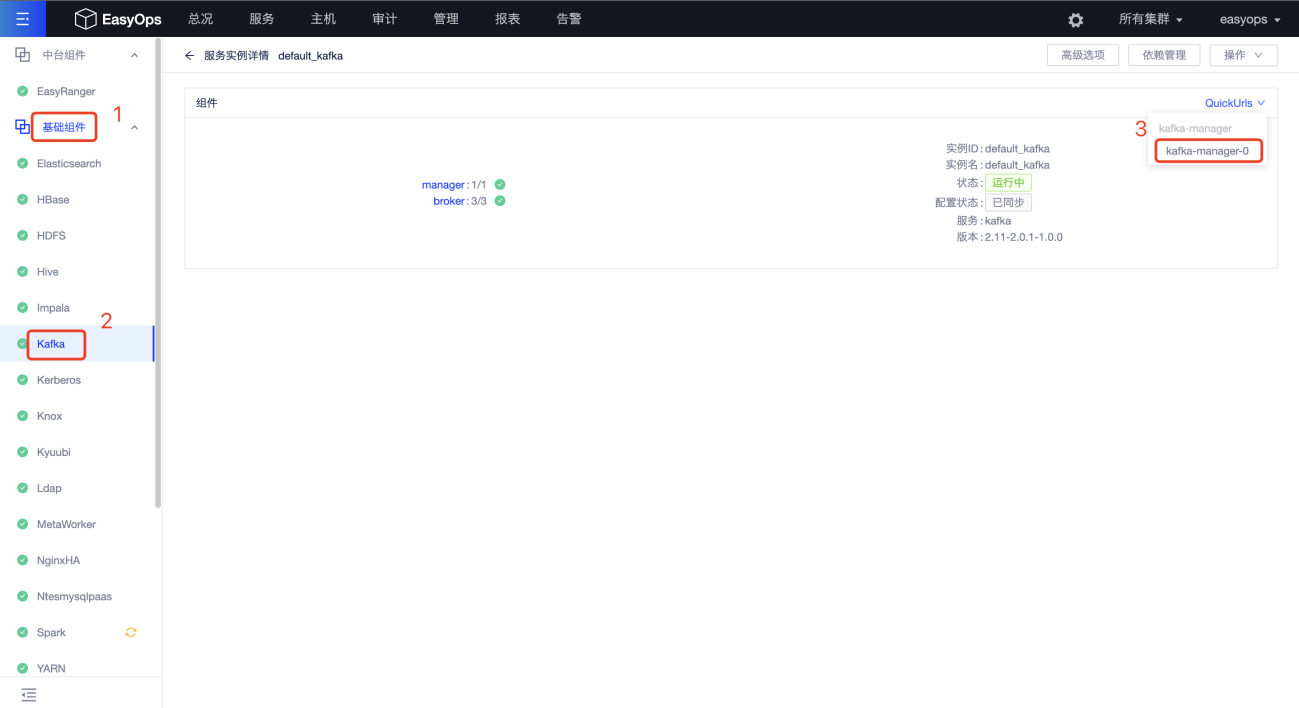

1. 通过EasyOps查看Kafka Manager获取配置信息

Zookeepers xnode3.local:2182 xnode4.local:2182 xnode2.local:2182/kafka

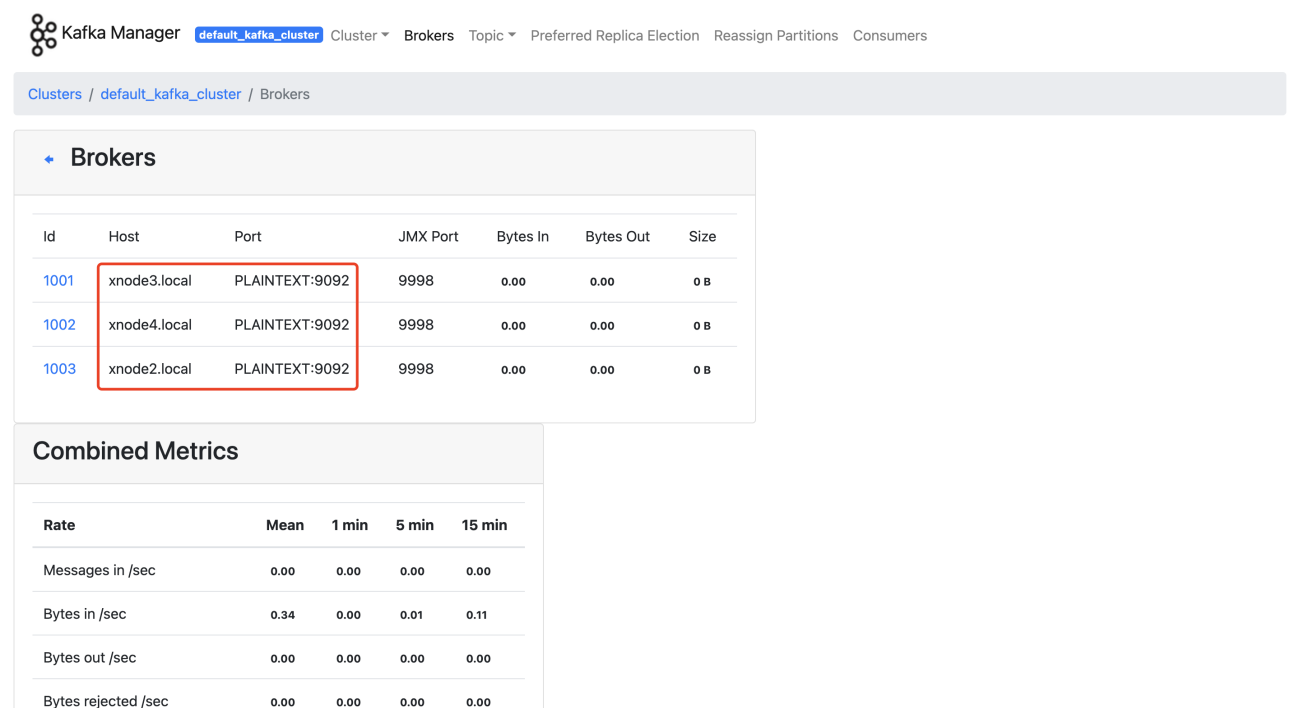

Brokers xnode2.local:9092,xnode3.local:9092,xnode4.local:9092

2. 登录Kafka broker部署服务器,执行kinit认证操作

# 执行klist查看Principal
klist -kt /etc/security/keytabs/kafka/kafka.service.keytab

# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/kafka/kafka.service.keytab kafka/xnode3.local@BDMS.COM

3. 查看Kafka broker部署目录查看EasyOps服务部署根目录（BASE_DIR），如/home/bdms 进入BASE_DIR,并逐级找到Kafka broker部署目录（其中202210181134422111b6b1df3为组件实例名，不同机器上不同），如下所示的/home/bdms/kafka/default_kafka/broker/202210181134422111b6b1df3

# 替换/home/bdms为上述获取的EasyOps服务部署的根目录BASE_DIR
[root@xnode3 ~]# cd /home/bdms/
[root@xnode3 bdms]# ls
easy_ranger        elasticsearch  hbase  hive  kafka     knox    ldap  monitor        spark2  zookeeper
easy_ranger_admin  hadoop         hdfs   java  kerberos  kyuubi  logs  ntesmysqlpaas  yarn
[root@xnode3 bdms]# cd kafka/
[root@xnode3 kafka]# ls
default_kafka
[root@xnode3 kafka]# cd default_kafka/
[root@xnode3 default_kafka]# ls
broker
[root@xnode3 default_kafka]# cd broker/
[root@xnode3 broker]# ls
202210181134422111b6b1df3
[root@xnode3 broker]# cd 202210181134422111b6b1df3/
[root@xnode3 202210181134422111b6b1df3]# ls
config  current  data  keytab  logs  monitor  package  pid
[root@xnode3 202210181134422111b6b1df3]# pwd
/home/bdms/kafka/default_kafka/broker/202210181134422111b6b1df3
[root@xnode3 202210181134422111b6b1df3]#

2.8.2 验证步骤

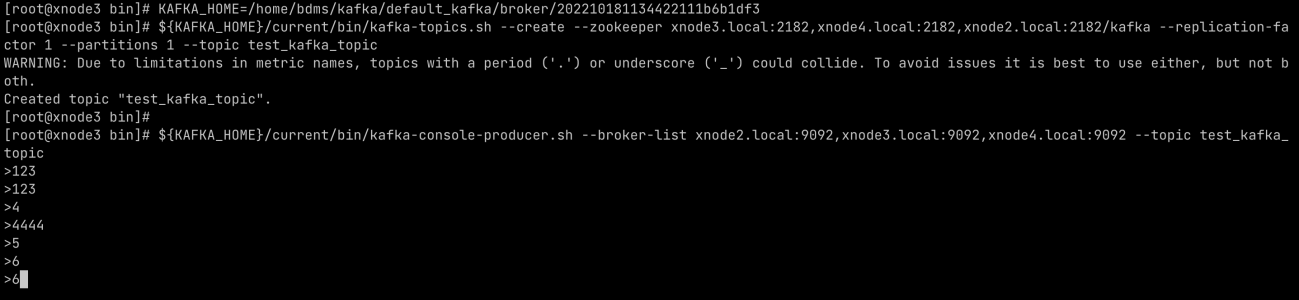

1. 创建topic，生产数据

KAFKA_HOME=/home/bdms/kafka/default_kafka/broker/202210181134422111b6b1df3
# 创建topic，此处的zookeeper列表为前置步骤1中获取，通过','拼接
${KAFKA_HOME}/current/bin/kafka-topics.sh --create --zookeeper xnode3.local:2182,xnode4.local:2182,xnode2.local:2182/kafka --replication-factor 1 --partitions 1 --topic test_kafka_topic

# 生产数据，此处的broker list为前置步骤1中获取，通过','拼接
${KAFKA_HOME}/current/bin/kafka-console-producer.sh --broker-list xnode2.local:9092,xnode3.local:9092,xnode4.local:9092 --topic test_kafka_topic
# 任意输入数据

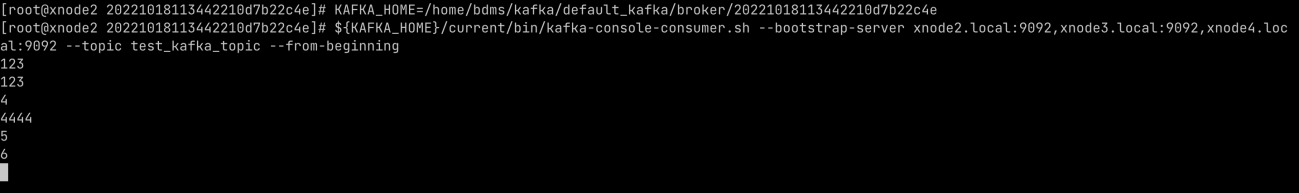

2. 登录其他broker节点，消费数据

# 获取该节点kafka broker部署目录
KAFKA_HOME=/home/bdms/kafka/default_kafka/broker/202210181134422111b6b1df3
# 消费数据，此处的bootstrap-server为前置步骤1中获取，通过','拼接
bin/kafka-console-consumer.sh --bootstrap-server xnode2.local:9092,xnode3.local:9092,xnode4.local:9092 --topic test_kafka_topic --from-beginning

2.8.3 预期结果

1. 命令均正常执行，topic正常创建，正常生产、消费数据

2.9 Knox 服务功能测试

1. 验证HDFS UI

通过EasyOps进入Knox服务实例，进入Quick UI点击HDFS UI
校验能否正常打开HDFS UI

2. 验证YARN UI

通过EasyOps进入Knox服务实例，进入Quick UI点击HDFS UI
校验能否正常打开YARN UI 3. 验证JobHistory UI
通过EasyOps进入Knox服务实例，进入Quick UI点击JobHistory UI
校验能否正常打开JobHistory UI，查看历史任务是否能正常展示 4. 验证SparkHistory UI
通过EasyOps进入Knox服务实例，进入Quick UI点击SparkHistory UI
校验能否正常打开SparkHistory UI，查看Spark历史任务是否能正常展示

2.10 Kudu服务验证

2.10.1 前置操作

按照上述步骤Impala验证中逻辑，已通过beeline连接impala

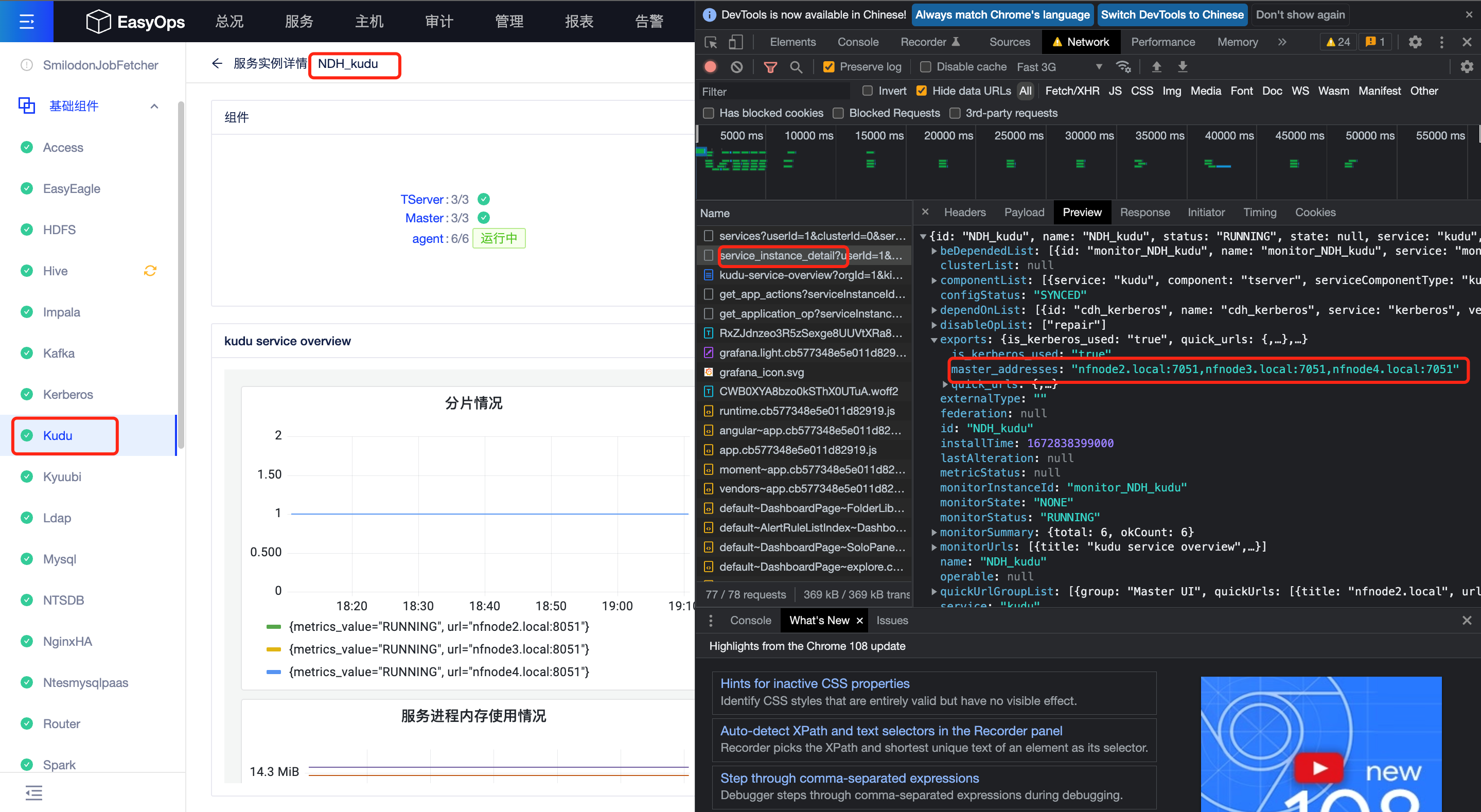

获取kudu master 信息 master_addresses: "nfnode2.local:7051,nfnode3.local:7051,nfnode4.local:7051"

2.10.2 验证步骤

Kudu基本功能验证

通过beeline连接Impalad 新建kudu表，并执行以下SQL

# 指定SPARK_CLIENT_HOME为上述查看的Spark Client部署目录
SPARK_CLIENT_HOME=/usr/easyops/spark2/default_spark2_client
source ${SPARK_CLIENT_HOME}/config/spark-env.sh

# 通过beeline连接
${SPARK_CLIENT_HOME}/current/bin/beeline -u "jdbc:hive2://xjnode3.local:2182,xjnode4.local:2182,xjnode5.local:2182/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=impala-ha/hiveserver2-default_impala;principal=impala/_HOST@BDMS.COM"

# 连接成功后，分别执行以下SQL

-- 新建kudu表，kudu.master_addresses 地址替换为上述查询的kudu master地址
CREATE TABLE ndh_test_db.test_ndh_kudu (
    id bigint,
    name string,
    cnt bigint,
    primary key(id)
)
PARTITION BY HASH(id) PARTITIONS 10
COMMENT 'kudu测试表'
STORED AS KUDU
TBLPROPERTIES ('kudu.master_addresses'='xjnode2.local:7051,xjnode4.local:7051,xjnode3.local:7051');
-- 插入数据
insert into ndh_test_db.test_ndh_kudu values (1, 'user1', 1111), (2, 'user2', 2222), (3, 'user3', 33333);
select * from ndh_test_db.test_ndh_kudu;
delete from ndh_test_db.test_ndh_kudu where id = 1;
select * from ndh_test_db.test_ndh_kudu;
-- 删除表
drop table ndh_test_db.test_ndh_kudu;

2.10.3 预期结果

SQL均正常执行成功。

2.11 Router服务验证

2.11.1 前置操作

1. 登录Router Client部署服务器

2. 执行kinit认证操作

# 执行klist查看Principal
klist -kt /etc/security/keytabs/router/hdfs.keytab
# 获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/router/hdfs.keytab hdfs/nbnode2.local@CDH.163.COM

2.11.2 验证步骤

Router基础功能回归

ROUTER_CLIENT_HOME=/usr/easyops/router/default_router_client
source ${ROUTER_CLIENT_HOME}/config/hadoop-env.sh
# 通过router新建目录
${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -mkdir /tmp/test_router_dir
# 通过router写入文件
${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -touchz /tmp/test_router_dir/ndh_test_file.txt
echo "<Text to append, ndh test: word count case>" | ${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -appendToFile - /tmp/test_router_dir/ndh_test_file.txt
# 通过router获取文件
${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -get /tmp/test_router_dir/ndh_test_file.txt
# 查看文件内容
${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -cat /tmp/test_router_dir/ndh_test_file.txt
# 删除目录
${ROUTER_CLIENT_HOME}/current/bin/hdfs dfs -rmr /tmp/test_router_dir

2.11.3 预期结果

命令均正常执行成功

2.12 Flink服务验证

2.12.1 前置操作

1. 登录Flink client部署服务器 2. 执行kinit认证操作

# 执行klist查看Principal
klist -kt /etc/security/keytabs/router/hdfs.keytab
#获取Principal后执行kinit认证
kinit -kt /etc/security/keytabs/router/hdfs.keytab hdfs/nbnode2.local@CDH.163.COM

2.12.2 验证步骤

Flink 功能回归

YARN_CLIENT_HOME=/usr/easyops/yarn/default_yarn_client
FLINK_CLIENT_HOME=/usr/easyops/flink/default_flink_client
source ${YARN_CLIENT_HOME}/config/hadoop-env.sh
# 新建目录及文件,hdfs://easyops-cluster
${YARN_CLIENT_HOME}/current/bin/hdfs dfs -rmr /tmp/flink-input
${YARN_CLIENT_HOME}/current/bin/hdfs dfs -rmr /tmp/flink-output
${YARN_CLIENT_HOME}/current/bin/hdfs dfs -mkdir /tmp/flink-input
${YARN_CLIENT_HOME}/current/bin/hdfs dfs -touchz /tmp/flink-input/ndh_test_file.txt
echo "<Text to append, ndh test: word count case>" | ${YARN_CLIENT_HOME}/current/bin/hdfs dfs -appendToFile - /tmp/flink-input/ndh_test_file.txt
# 提交flink任务
${FLINK_CLIENT_HOME}/current/bin/flink run -m yarn-cluster -yjm 1024m -ytm 1024m -c org.apache.flink.examples.java.wordcount.WordCount ${FLINK_CLIENT_HOME}/current/examples/batch/WordCount.jar --input hdfs://easyops-cluster/tmp/flink-input/ndh_test_file.txt --output hdfs://easyops-cluster/tmp/flink-output/

2.12.3 预期结果

命令均正常执行成功,无报错

1 前置步骤

1.1创建NDH用户

1.2 YARN 资源池配置

1.3 Hive 测试库预置

1.4 通过Access 级联授权

2 组件服务功能测试

2.1 HDFS 服务功能测试

2.1.1 前置操作

2.1.2 验证步骤

2.1.3 预期结果

2.2 Yarn 服务功能测试

2.2.1 前置操作

2.2.2 验证步骤

2.2.3 预期结果

2.3 Hive 服务功能测试

2.3.1 前置操作

2.3.2 验证步骤

2.3.3 预期结果

2.4 Spark 服务功能测试

2.4.1 前置操作

2.4.2 验证步骤

2.4.3 预期结果

2.5 Kyuubi 服务功能测试

2.5.1 前置操作

2.5.2 验证步骤

2.5.3 预期结果

2.6 Impala 服务功能测试

2.6.1 前置操作

2.6.2 验证步骤

2.7 HBase 服务功能测试

2.7.1 前置操作

2.7.2 验证步骤

2.8 Kafka 服务功能测试

2.8.1 前置操作

2.8.2 验证步骤

2.8.3 预期结果

2.9 Knox 服务功能测试

2.10 Kudu服务验证

2.10.1 前置操作

2.10.2 验证步骤

2.10.3 预期结果

2.11 Router服务验证

2.11.1 前置操作

2.11.2 验证步骤

2.11.3 预期结果

2.12 Flink服务验证

2.12.1 前置操作

2.12.2 验证步骤

2.12.3 预期结果

以上内容对您是否有帮助？
